Busbars and Fingers in Solar Cells: The Silent Architects of Solar Energy

When people look at a solar panel, they usually see a sleek, shining surface capturing sunlight. But if you look a little closer, you’ll notice a network of fine silver lines running across each cell. These tiny details—called busbars and fingers—may look simple, but they are the unsung heroes of solar technology.

Without busbars and fingers, a solar cell cannot efficiently convert sunlight into usable power. They are the tiny highways and lanes that collect and carry electricity within the cell. And as solar technology continues to evolve, innovations in these “silent architects” are making panels more efficient, more affordable, and more reliable.

In this blog, we’ll explore what busbars and fingers are, how they work, why they are important, and how modern innovations are shaping the future of solar energy.

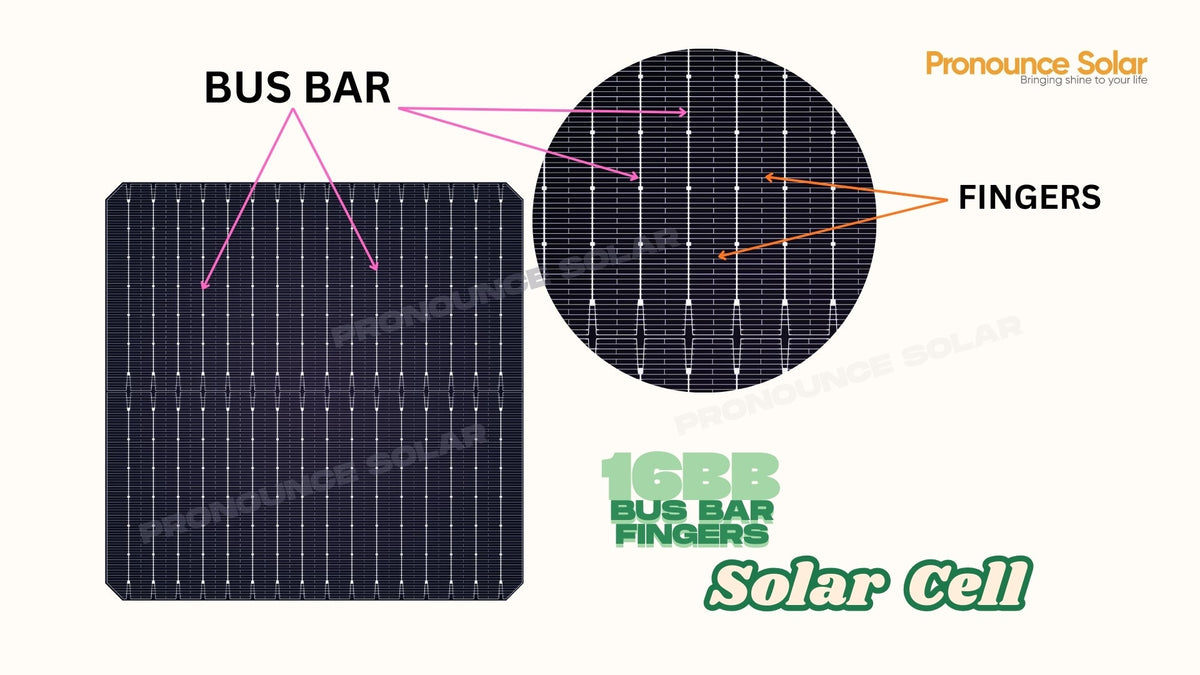

What Are Busbars in Solar Cells?

Busbars are the thicker metallic lines you see on the surface of a solar cell. They act as the main highways for electricity, collecting current from the smaller fingers and transporting it out of the cell to the rest of the solar module.

Key Roles of Busbars:

1. Current Collection and Transport – Busbars gather electrons from the fingers and move them into the external circuit.
2. Reduced Resistance – By providing a wide path for current, busbars reduce resistive losses.
3. Cell Interconnection – They allow multiple solar cells to be connected with ribbons to form a full module.
4. Mechanical Strength – Busbars add structural integrity, helping the cell endure manufacturing and installation stresses.

Traditionally, cells had 2 or 3 busbars, but modern designs now feature 5, 9, or even 12 busbars for improved efficiency.

What Are Fingers in Solar Cells?

Fingers are the thin, hair-like metallic lines that spread across the surface of the solar cell. Their purpose is to collect the electrons generated when sunlight strikes the silicon layer.

Key Roles of Fingers:

1. Electron Collection – Fingers gather the charges created when photons hit the cell.
2. Minimal Shading – They are made very thin so they don’t block too much sunlight.
3. Efficient Transfer – They pass electricity to the busbars with low resistance.
4. Balance Between Light & Power – Fingers must be thin enough to allow light absorption, yet conductive enough to carry electrons.

The design of fingers is a delicate science: too thick and they block sunlight; too thin and they may not carry enough current.

Why Busbars and Fingers Matter in Solar Cell Efficiency

The design of busbars and fingers directly impacts solar panel performance. Here’s how:

• Shading Loss: Thick or poorly designed fingers block more sunlight, reducing power generation.
• Electrical Resistance: Too few busbars mean longer paths for electrons, which increases resistance and heat.
• Durability: Properly designed busbars prevent hotspots, cracks, and long-term degradation.
• Cost: Silver is an expensive material. Optimizing busbar and finger design reduces silver usage while keeping efficiency high.

In short: better busbar and finger design = more power, less cost, and longer panel life.

Evolution of Busbars and Fingers in Solar Technology

1. From 2BB to 5BB (Traditional Cells)

Early solar cells used 2 busbars (2BB), later upgraded to 3BB and 5BB for better current collection.

2. Multi-Busbar (MBB) Technology

Modern cells now feature 9BB, 12BB, or more. By increasing the number of busbars, the distance electrons travel is shorter, reducing resistive losses and improving efficiency by up to 1–2%.

3. Half-Cut Cell Design

Cells are split into two halves, reducing current per section and lowering resistive losses. Combined with multiple busbars, this technology boosts durability and power output.

4. Busbar-less / Wire-based Technology

Some advanced designs are experimenting with replacing traditional busbars with thin wires or mesh, further reducing shading and silver usage.

5. Bifacial & Advanced Cells (TOPCon, HJT, IBC)

Next-gen cells like HJT (Heterojunction) and IBC (Interdigitated Back Contact) move fingers and busbars to the back of the cell, leaving the front free for maximum light absorption.

Why This Matters for Solar Customers and EPC Companies

When EPCs or homeowners choose a solar panel, they often look only at the wattage. But the quality of busbars and fingers is just as critical.

• Higher Efficiency → More energy from the same space.
• Lower Lifetime Cost → Less degradation, better ROI.
• Improved Reliability → Panels perform consistently in hot, dusty, or humid Indian conditions.
• Future-Proof Investment → Panels with MBB or advanced busbar designs stay efficient longer.

For customers in India—where dust, heat, and grid challenges are common—choosing panels with strong busbar and finger design ensures better performance over 25+ years.

Uses Across Solar Applications

Busbars and fingers are not just theoretical; they shape solar performance across sectors:

• Residential Rooftops – Higher efficiency panels reduce space needs.
• Commercial Buildings – Better busbar design = higher ROI per square foot.
• Industrial Plants – Lower resistance losses mean more reliable large-scale generation.
• Utility Projects – Multi-busbar and bifacial technologies maximize yield and minimize losses in massive solar farms.



Conclusion

Busbars and fingers may seem like small details, but they are the lifelines of solar cells. Fingers quietly collect electrons from sunlight, while busbars carry that current out into usable electricity.

As solar technology evolves—from multi-busbar designs to advanced HJT and IBC cells—these tiny silver lines continue to shape the efficiency, cost, and future of solar power.

For EPCs, businesses, and homeowners, understanding the role of busbars and fingers is more than technical knowledge—it’s the difference between an average solar plant and a truly optimized system.

So next time you look at a solar panel, remember: those little silver lines are the silent architects powering our clean energy revolution.

FAQ / Google Snippet Style Version (Quick SEO Boost)

❓ What are busbars in solar cells?

Busbars are thick metallic lines that collect current from the cell’s fingers and transport it to the external circuit. They act as highways for electricity.

❓ What are fingers in solar cells?

Fingers are thin metallic lines on the surface of a solar cell. They collect electrons generated by sunlight and pass them on to the busbars.

❓ Why are busbars and fingers important?

They directly affect efficiency, durability, and cost. More busbars reduce resistance, thinner fingers reduce shading, and optimized designs improve power generation.

❓ How have busbars evolved?

Solar cells have moved from 2BB to 12BB and beyond. Multi-busbar, half-cut, bifacial, and HJT technologies reduce power losses and increase efficiency.

❓ What’s the benefit for customers?

Better busbar and finger design means more energy, better ROI, and longer system life. Panels with advanced designs are more reliable in Indian conditions.
