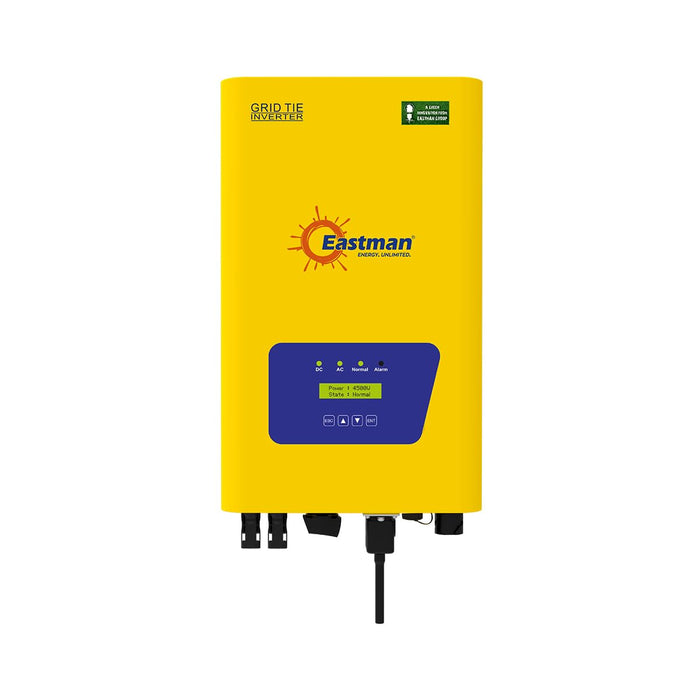

Upgrade your solar system with the Eastman 5KW 3-Phase Grid-Tied Solar Inverter, engineered for high-efficiency solar energy generation in homes, factories, offices, and commercial buildings. This inverter is ideal for PM Surya Ghar Yojna and other net-metering programs.
🔋 Key Features:
✅ 5KW 3-Phase Grid-Tie Inverter
✅ 2 MPPT Inputs for optimized power tracking
✅ Low Voltage Startup – Generates power even in low light
✅ 10-Year Warranty for peace of mind
✅ High Efficiency >97% for maximum returns
✅ Robust Build – Suitable for Indian weather conditions
📦 Perfect For:
Residential Rooftops (with 3-phase supply)
Housing Societies & RWAs
Commercial Complexes
Industrial Units
Government Subsidy Projects (like PM Surya Ghar Yojna)
🚀 Why Choose Eastman?
Trusted Indian brand
PAN India service & support
Fast installation support
Designed for high-performance & long life
|
Technical Specification |
||
|
S.No. |
Parameters |
ES5KWS-GT-1 |
|
1 |
Warranty |
10 years |
|
2 |
Max. DC Input Power (kW) |
7.5KW |
|
3 |
Max. DC Input Voltage (V) |
1100V |
|
4 |
Start-up DC Input Voltage (V) |
150V |
|
5 |
MPPT Operating Range (V) |
150-1000 |
|
6 |
Max. DC Input Current (A) |
15X2 |
|
7 |
Max. Short Circuit Current (A) |
25X2 |
|
8 |
No. of MPP Trackers |
2 |
|
9 |
Rated Output Power (kW) |
5KW |
|
10 |
Rated Output Power (VA) |
NA |
|
11 |
Nominal Output Voltage / Range (V) |
3P+N+PE/+PE 230/400V |
|
12 |
Rated Grid Frequency (Hz) |
50/60Hz ±5Hz |
|
13 |
Operating Phase |
Three Phase |
|
14 |
Max. AC Output Current (A) |
8.3/8A |
|
15 |
Surge protection |
INTEGRATED (TYPE III) |
|
16 |
AC Connection |
Three Phase |
|
17 |
Interface |
Wifi |
|
18 |
Dimension (L*W*H) |
370x510x167 |
Â
Â
Â
