Solocell MC4 Male Female Solar Panel Cable Connectors (Set of 50 Pairs) MC4 Connectors

Solocell Cable Connectors are made from high quality PPO materials to ensure the long term durability (compare to the cheap sheet metal pin), PPO materials have advantages that sturdy, impact, corrosion-resistant with a high Ignition point Ensure service life and safety performance. With excellent aging resistance and UV endurance,

Our Connectors makes a rock solid connection once the pins are properly crimped with Solar DC Wire. Kenbrook connectors are more durable compare to other similar products in the market. These connectors are design to withstand extreme weather conditions and heavy loads up to 1000 Volt - 30 AMP current.

About this item

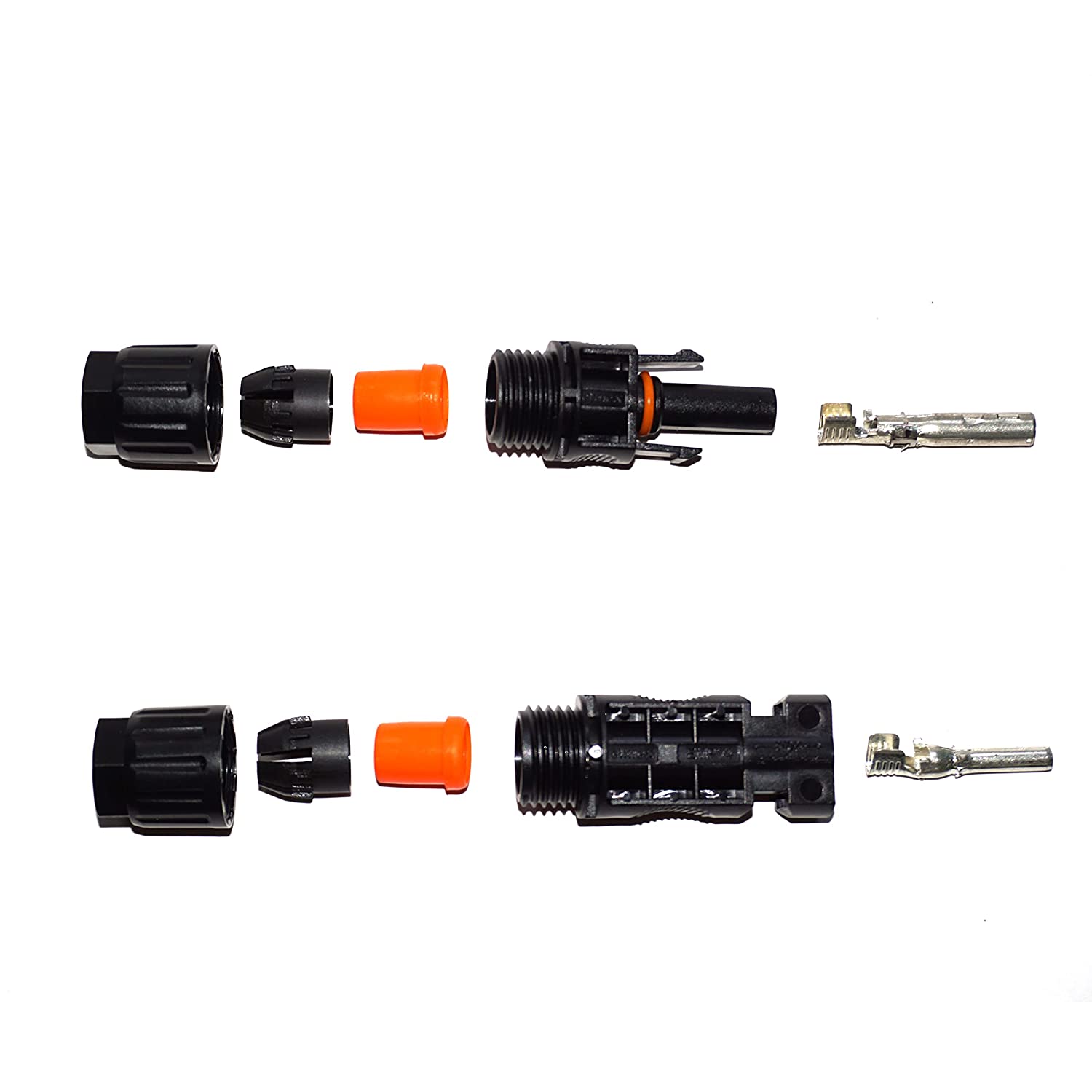

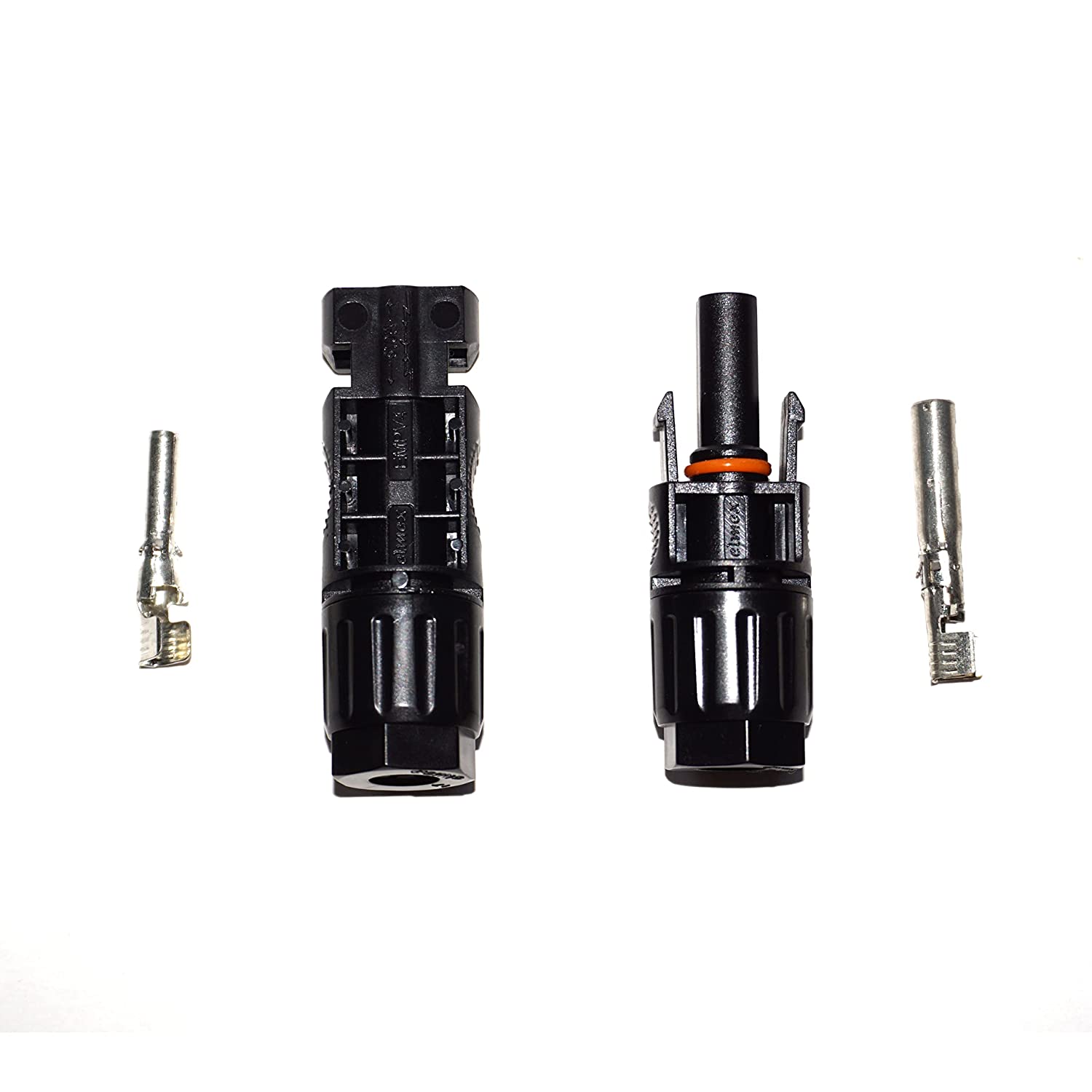

【MC4 Solar Connectors】Solocell Mc4 Connector Conductor pin is tinned Copper, Body is made of PPO + PA material, It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load.

【Compatible Cable】Compatible with PV cables with different insulation diameters (2.5m㎡-- 6m㎡/14AWG -- 10AWG).

【Product Features】Operating temperature: -40°C to +80°C; Rated voltage: 1000V DC; Rated Current: 50A.

【UV Resistance and Long Life 】With excellent aging resistance and UV endurance, it can be used in harsh environment., The estimated long life is 25 Years

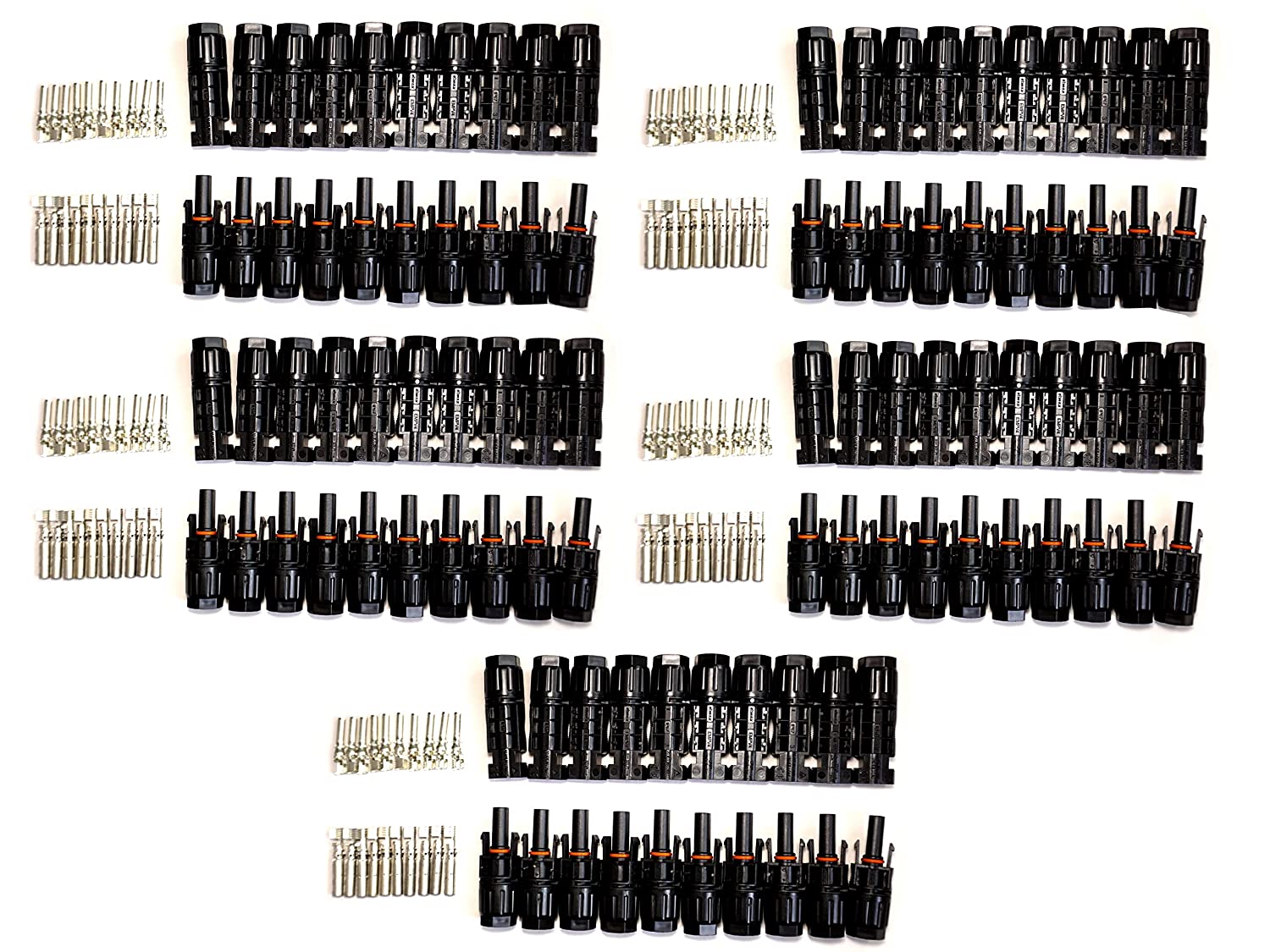

【What You Get】50pairs solar panel connectors Male & Female + 50 pairs solar connector pins
