Zero Busbar (0BB) Technology in Solar Modules – The Ultimate 2025 Guide

By Anoop Singh | November 26, 2025

Zero Busbar (0BB) Solar Technology — Complete Guide

Introduction

Zero Busbar (0BB) technology removes front-side metal busbars from solar cells so the entire cell surface is available to absorb sunlight. This guide explains 0BB in plain language and technical detail, covering HJT, TOPCon, IBC, and Shingled modules, with performance, reliability, and buying guidance.

What is Zero Busbar (0BB) Technology?

Zero Busbar refers to photovoltaic cell and module designs that have no visible metal busbars on the top surface. Instead of front-side busbars, current is collected via back-side contacts, ultra-fine copper meshes, conductive adhesives, or shingled cell interconnections. The main benefits are reduced shading, lower series resistance, improved aesthetics, and lower risk of microcracks from soldering.

What Are Busbars & Why They Matter

Busbars are narrow conductive strips (usually silver paste) printed or plated on the cell surface to collect charge. They historically served as the main low-resistance path to transfer current to ribbons and the junction box. While necessary for older technologies, busbars block a small fraction of light (typically 2–5%), add manufacturing cost (silver consumption), and can create heat and stress points. Removing them addresses these issues.

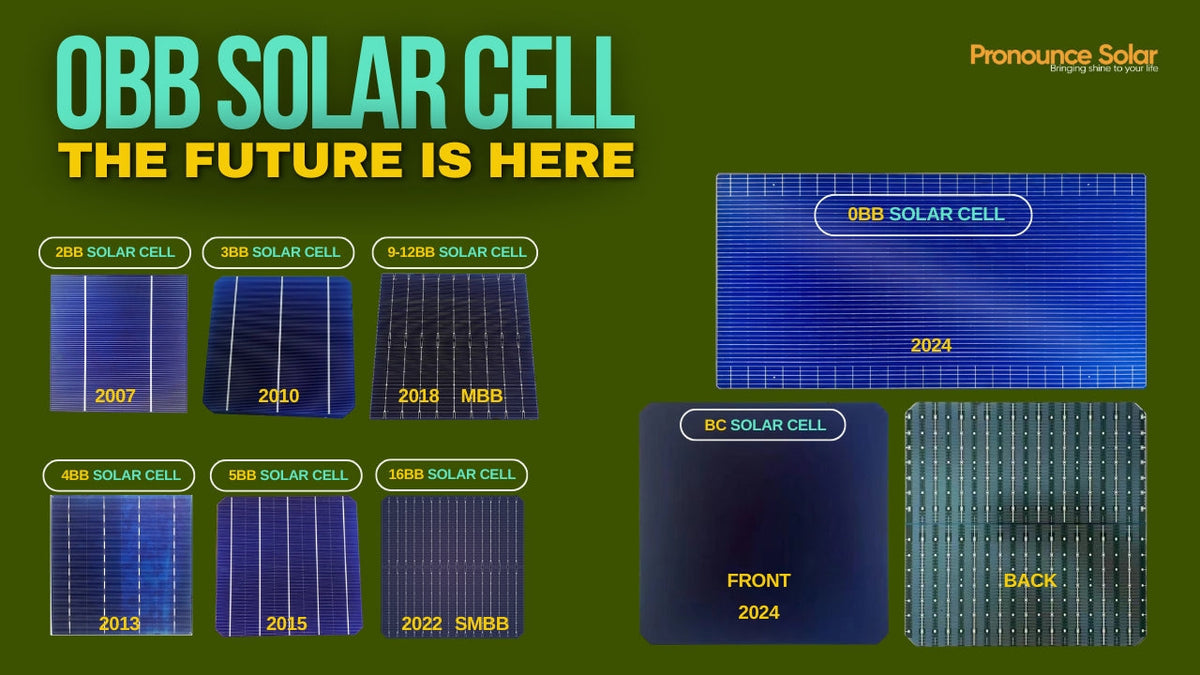

Evolution of Busbar Technologies (3BB → 20BB → 0BB)

Cell interconnection progressed from 3BB to 5BB, then 9BB and beyond to reduce shading. Zero busbar (0BB) is the next step — eliminating front-side busbars entirely. This evolution is driven by higher-efficiency cells producing greater current densities and by rising silver costs.

Why the Solar Industry Is Migrating to Zero Busbar

Manufacturers and system designers choose 0BB for: improved module efficiency, better low-light and bifacial output, reduced microcracks and thermal stress, lower material costs for precious metals, and premium aesthetic appeal for rooftop and BIPV applications.

Technical Working of Zero Busbar (Deep Explanation)

Zero BB architectures replace large front busbars with alternative current collection methods. These include:

Back-side metallization (IBC): All contacts are moved to the rear of the cell, eliminating front shading.
Copper mesh or micro-wires: Ultra-fine copper wires or printed copper micro-grids laminated on the front can collect current with minimal shading.
Conductive adhesives: Electrically conductive adhesives bond cell fingers or shingled strips without high-temperature soldering.
Shingled interconnection: Cell strips overlap and connect through conductive adhesives to form a continuous current path with no visible busbars.

Different Zero Busbar Architectures

Key 0BB architectures include:

IBC (Interdigitated Back Contact): All electrodes on the rear—best aesthetics and high efficiency.
HJT with copper mesh: Heterojunction cells are sensitive to thermal stress and pair well with low-temperature, solder-free copper interconnects.
TOPCon with multi-wire interconnects: TOPCon benefits from fine-wire collection and shingled or overlap connections to reduce resistance.
Shingled modules: Cells cut into strips and overlapped—naturally busbar-free with improved packing density.

Detailed Comparison: Busbar vs Zero Busbar

Compared to traditional busbar modules, 0BB modules typically show:

Lower shading and higher active area
Reduced silver/paste usage
Improved low-light and temperature performance
Lower microcrack incidence due to solderless interconnects
Cleaner, all-black aesthetic preferred on rooftops

Zero Busbar in HJT, TOPCon, IBC & Shingled Modules

Each advanced cell technology leverages 0BB differently:

HJT (Heterojunction): Uses thin-film amorphous layers and benefits from low-temperature, solderless interconnects that preserve cell integrity.
TOPCon: N-type passivated contact cells work well with fine-wire or shingled connections to maximize bifacial and rear-side yield.
IBC: The natural zero-busbar design—excellent for high-efficiency, premium modules.
Shingled: High packing density, less resistance, and modular flexibility for curved or BIPV surfaces.

Top 10 Advantages of Zero BB

Eliminates front-side shading from busbars
Higher module-level efficiency and energy yield
Reduced microcracks and thermal stress
Lower precious-metal consumption (silver)
Improved low-light performance
Better bifacial performance where applicable
Improved aesthetics for rooftop & BIPV use
Lower hotspot risk
Higher long-term durability and reduced degradation
Compatibility with next-gen cell technologies (HJT, TOPCon, IBC)

Efficiency Improvement Analysis

Typical module-level gains from moving to 0BB vary by cell type but commonly range from 1–3% absolute module efficiency. For high-efficiency cells (HJT, IBC), the relative performance improvement and ROI can be significantly larger due to better bifaciality and reduced losses.

Electrical Performance Improvements

Zero BB reduces series resistance and improves fill factor. It also reduces local hotspots and improves the I-V curve stability under thermal cycling. In bifacial installations, 0BB architectures enable better rear-side photon capture and lower mismatch losses.

Zero BB & Microcrack Reduction

Eliminating high-temperature solder points reduces mechanical and thermal stress during module manufacture and operation, decreasing microcrack formation and propagation. This extends useful lifetime and reduces early degradation.

Thermal Advantages of Zero BB

0BB reduces localized heating from front-side metal lines and improves overall heat spreading. A lower temperature coefficient results in better performance in hot climates and improved energy yield during peak sun hours.

Aesthetic Improvements

All-black, busbar-free module surfaces are visually consistent and preferred for visible rooftop installations and building-integrated PV (BIPV) projects. This often increases perceived value and homeowner acceptance.

Durability & Long-Term Reliability

Zero BB modules typically show reduced mechanical failure modes and improved resistance to PID, LeTID, and microcrack-driven degradation when manufactured and installed correctly.

Manufacturing Process of Zero BB Solar Panels

Key steps include cell production (HJT/TOPCon/IBC), application of alternative current collection (copper mesh, micro-wires, or back-contact metallization), adhesive-based interconnection or shingling, lamination, EL/flash testing, and framing. Process control and precision equipment are essential for high yield.

Challenges & Limitations (Realistic View)

Challenges include higher initial production precision, costs for conductive adhesives or fine-wire placement equipment, repair complexity, and the need for trained installers. Some 0BB methods also require specific junction box and module assembly adjustments.

Market Trends (2023–2025 Global Shift)

From 2023 to 2025, leading manufacturers have accelerated adoption of 0BB for premium rooftop and C&I segments. Market adoption is driven by rising silver prices, demand for higher efficiency, and consumer preference for sleek module aesthetics.

Real-World Applications

0BB modules are ideal for residential rooftops, commercial & industrial installations with limited roof area, BIPV, carports, floating PV, and high-end architectural installations where aesthetics and yield per area matter.

Cost Comparison & ROI

Upfront cost for some 0BB modules can be higher than standard PERC modules, but improved energy yield, lower degradation, and longer useful life usually deliver better lifetime ROI. Total cost of ownership often favors 0BB in constrained-space or premium applications.

Detailed Buying Guide

When procuring 0BB modules, consider: cell technology (HJT, TOPCon, IBC, Shingled), module efficiency, bifacial gains, warranty terms (product and performance), manufacturer reputation, EL/flasher test certificates, and ALMM/BIS compliance for India. Contact Pronounce Solar for technical selection assistance and project quotes.

FAQ Section

Q: Are zero busbar modules worth the premium? A: For rooftop and C&I sites where area is limited or aesthetics matter, yes—ROI and lifetime yield improvements typically justify the premium.

Internal Links

Relevant Pronounce Solar pages: Enquire Now, ALMM List, Projects.

External Links

Authoritative references: International Energy Agency (IEA) Solar PV reports, NREL PV research, Fraunhofer ISE PV technology. These sources provide research context and further reading on cell efficiency and industry trends.

Conclusion

Zero Busbar (0BB) technology is a key evolution for modern PV modules. When combined with advanced cell types such as HJT, TOPCon, IBC and shingled designs, 0BB delivers higher efficiency, better durability, and a premium aesthetic. For procurement or technical advice, contact Pronounce Sunhealth Services Pvt Ltd at Pronounce Solar.

Keywords: zero busbar, 0BB, HJT 0BB, TOPCon zero-busbar, IBC modules, shingled panels, zero bb guide, Pronounce Solar.

Introduction

In the last few years, the solar industry has taken a massive leap in cell and module design.
From polycrystalline to monocrystalline, from PERC to TOPCon and HJT—technology has continuously evolved.

But one innovation has silently changed everything:
Zero Busbar Technology (0BB).

Earlier, every solar panel had busbars (BB)—silver-coated metal lines on the surface of each solar cell.
These lines were necessary for collecting current.

But they also blocked sunlight, created resistance, caused microcracks, and made panels heat faster.

𝗭𝗲𝗿𝗼 𝗕𝘂𝘀𝗯𝗮𝗿 even eliminates these lines completely.

The result is:

Higher efficiency
More sunlight absorption
Better performance in heat
Cleaner aesthetics
Longer lifespan

This guide explains everything about Zero BB—from basics to advanced engineering concepts—so even a first-time buyer or a trained solar professional can understand the technology deeply.

Table of Contents (Click to Expand)

1. Introduction
2. What is Zero Busbar (0BB) Technology?
3. What Are Busbars & Why They Matter
4. Evolution of Busbar Technologies (3BB → 20BB → 0BB)
5. Why the Solar Industry Is Migrating to Zero Busbar
6. Technical Working of Zero Busbar (Deep Explanation)
7. Different Zero Busbar Architectures
8. Detailed Comparison: Busbar vs Zero Busbar
9. Zero Busbar in HJT, TOPCon, IBC & Shingled Modules
10. Top 10 Advantages of Zero BB
11. Efficiency Improvement Analysis
12. Electrical Performance Improvements
13. Zero BB & Microcrack Reduction
14. Thermal Advantages of Zero BB
15. Aesthetic Improvements
16. Durability & Long-Term Reliability
17. Manufacturing Process of Zero BB Solar Panels
18. Challenges & Limitations (Realistic View)
19. Market Trends (2023–2025 Global Shift)
20. Real-World Applications
21. Cost Comparison & ROI
22. Detailed Buying Guide
23. FAQ Section
24. Conclusion

2. What is Zero Busbar (0BB) Technology?

✔ Simple Explanation for Normal Users

Zero Busbar means no silver lines on the front surface of solar cells, so the entire cell is free to absorb sunlight.

Imagine a window with 10 metal rods blocking sunlight.
Now imagine the same window without obstruction.
This is exactly what happens in Zero BB modules.

✔ Technical Definition

Zero Busbar (0BB) technology is a front-contact–free photovoltaic architecture that eliminates traditional silver busbars from the cell surface. Current is collected using:

Rear-side metallization
Conductive adhesives
Micro-wire grids
Mesh-based front electrodes
Shingled overlapping connections

This dramatically reduces shading and series resistance.

3. What Are Busbars & Why They Matter

Busbars are silver-coated thick conductive strips printed on solar cells.
Their functions:

Collect electrons from the cell's surface
Transfer charge to the interconnecting ribbons
Enable module-level wiring

But they also cause problems:

Issue	Explanation
Shading	Busbars block 2–5% sunlight
Silver Cost	Silver is expensive; raises module cost
Heat	Busbars heat under high current
Microcracks	High-temperature soldering damages cells
Reflection	Metal reflects some sunlight

In high-end technologies like HJT/IBC, these problems become more serious.

Zero BB solves all of them.

4. Evolution of Busbar Technologies (3BB → 20BB → Zero BB)

Solar industry evolution:

First Generation (3BB, 4BB, 5BB)

Large busbars, high shading, lower efficiency.

Second Generation (9BB, 12BB, 16BB, 20BB)

Smaller busbars → reduced shading → higher output.
But still not perfect.

Third Generation (0BB / Zero Busbar)

No busbars at all → 100% sunlight area utilisation.

Technology	Shading Loss	Silver Consumption	Efficiency
5BB	High	Very High	Moderate
9BB	Medium	High	Good
16BB	Very Low	Medium	Very Good
0BB	Zero	Lowest	Excellent

5. Why the Solar Industry Is Migrating to Zero Busbar

1. Busbars Cause Shading

Even very thin busbars reduce light absorption.

2. Silver Costs Are Rising

Silver is one of the most expensive raw materials in solar manufacturing.
0BB reduces silver usage by 60–80%.

3. More Current Density Requires Better Conduction

High-efficiency cells produce more current.
Busbars saturate easily.

4. Premium Aesthetics

Panels look more elegant and uniform.

5. Required for HJT, IBC, Shingled, and TOPCon

Modern cells naturally need zero busbars.

6. Lower Resistance & Better Heat Management

Improves performance in hot climates like India.

6. Technical Working of Zero Busbar (Deep Explanation)

To understand Zero BB technically, imagine current moving inside a solar cell.

Earlier, current would travel:

Fingers → Busbars → Ribbon → Busbars → Junction box

This had multiple resistance points.

In Zero BB, current flows via:

Ultra-thin copper wires
Rear electrodes
Conductive adhesives
Laser micro-grid patterns

The 0BB Architecture:

Front surface has 0 shading
Back surface handles collection
Interconnection via micro wires
Conductive adhesives replace solder ribbons
Bifacial performance improves

Zero BB reduces series resistance (Rs) significantly.

7. Different Zero Busbar Architectures (Detailed Explanation)

1. Copper Mesh Technology (HJT/TOPCon)

A mesh of extremely fine copper wires replaces busbars.

Advantages:

Almost invisible
Excellent conductivity
No heating issues

2. Backside Metallization (IBC)

All electrical contacts are on the back.

Advantages:

No metal on front = best efficiency
Best aesthetics

3. Shingled Interconnection (Adhesive Based)

Cells are cut into thin strips and slightly overlapped.

Advantages:

Increased power density
Reduced resistance

4. Multi-Wire (MWT) Zero BB

Used in high-density HJT and TOPCon modules.

Advantages:

Very low resistance
Excellent durability

8. Detailed Comparison: Busbar vs Zero Busbar

Feature	Busbar Technology	Zero Busbar Technology
Shading Loss	High	Zero
Aesthetic Look	Visible lines	Black, premium
Microcracks Risk	High	Low
Silver Cost	High	Low
Heat Generation	High	Low
Lifetime	Good	Very High
Cell Stress	High (soldering)	Very low
Efficiency	19–21%	22–24%+

9. Zero Busbar in HJT, TOPCon, IBC & Shingled Modules

9.1 Zero Busbar in HJT (Heterojunction)

HJT is a delicate technology that uses thin amorphous silicon layers.

Zero BB benefits:

Solder-free interconnection
Reduced thermal stress
Higher efficiency (23–24%)
Perfect bifacial response

HJT thrives with Zero BB.

9.2 Zero Busbar in TOPCon Modules

TOPCon, especially N-type TOPCon 2.0 & 3.0, uses:

Multi-wire interconnection
Thin copper wires
Half-cut or 1/3-cut cells

Zero BB enables:

Better bifaciality
Stronger current flow
Lower resistance losses

TOPCon will fully adopt Zero BB by 2026.

9.3 Zero Busbar in IBC (Interdigitated Back Contact)

IBC is the most advanced solar cell design.

All contacts placed on the back
No busbars on top
Best-in-class efficiency
Used in SunPower Maxeon modules

Zero BB is natural in IBC.

9.4 Zero Busbar in Shingled Modules

Shingled modules:

Cut cells into small strips
Overlap them like tiles
Use conductive adhesive

Benefits:

No shading
Very high power density
Flexible cell layout

Shingled = a form of Zero Busbar by default.

10. Top 10 Advantages of Zero Busbar

1. Zero Shading

Full sunlight hits the cell.

2. Higher Efficiency

Gains of 1–3% at module level.

3. More Power in Low Light

Morning, evening, winter, rainy days.

4. Lower Heat Generation

Increases output in Indian conditions.

5. Lower Silver Cost

More economical for manufacturers.

6. Reduced Microcracks

No high-temperature soldering.

7. Better Aesthetics

Ideal for premium homes.

8. Strong Bifacial Output

Better rear-side collection.

9. Higher Durability

Better resistance to PID and LeTID.

10. Longer Lifespan

Lower mechanical stress.

11. Efficiency Improvement Analysis

Zero BB increases:

Photo absorption
Current density
Fill factor (FF)
I-V curve stability

Typical efficiency upgrades:

Technology	Efficiency Without 0BB	With 0BB
HJT	21–22%	23–24%
IBC	23–24%	25–26%
Shingled	19–20%	21–22%
TOPCon	21.5–22%	23%

12. Electrical Performance Improvements

Zero BB improves:

1. Series resistance (Rs)

Less resistance → more current flow.

2. Parallel resistance (Rp)

Better insulation.

3. Reduced recombination

Better rear contact design.

4. Higher Fill Factor (FF)

Better quality I-V curve.

13. Zero BB & Microcrack Reduction

Microcracks happen when cells are heated during soldering at 200–250°C.

Zero BB uses:

low-temperature conductive adhesive
micro-wire interconnection
no soldering

Microcracks reduce by 40–70%.

14. Thermal Advantages of Zero BB

Busbars heat up quickly.
Zero BB reduces:

heat spots
thermal cycling stress
temperature coefficient

A lower temperature coefficient means more power in extreme heat.

15. Aesthetic Improvements

Zero BB panels appear:

fully black
uniform
premium
modern
perfect for villas, hotels, bungalows, glass facades

Looks matter a lot in residential rooftop installations.

16. Durability & Long-Term Reliability

0BB improves:

mechanical stability
vibration resistance
UV stability
long-term electrical bonding

Modules degrade slower, preserving performance.

17. Manufacturing Process of Zero BB Solar Panels

Key steps:

Wafer slicing
Cell manufacturing (HJT/TOPCon/IBC)
Anti-reflective coating
Removal of busbar printing
Mesh/wire application
Adhesive interconnection
Lamination
EL and flasher testing
Framing and junction box installation

18. Challenges & Limitations (Realistic View)

Higher manufacturing precision required
Conductive adhesive is costlier
Repairing Zero BB is complex
Not all manufacturers have upgraded machines
Handling requires skilled technicians

19. Market Trends (2023–2025 Global Shift)

Brands adopting Zero BB:

Waaree Energies - HJT India
Vikram Solar HJT - India
Adani Solar TOPCon - India
Reliance - HJT - India
Jinko Solar - China
Trina Solar - China
Longi- China
JA Solar - China
SunPower - China
Risen - China

By 2026, 80% of premium modules will be Zero BB.

20. Real-World Applications

Best suited for:

Residential rooftop
Commercial & industrial
Solar carports
Floating solar
Cold climates (less microcracks)
BIPV

21. Cost Comparison & ROI

Zero BB panels cost slightly higher but:

Produce more energy
Last longer
Give better resale value
Lower maintenance

ROI improves by 8–12%.

22. Detailed Buying Guide

Look for:

Technology type:
- TOPCon
- HJT
- IBC
- Shingled
Efficiency:
Minimum 21%.
Bifacial factor:
Albedo 25% for TOPCon & HJT.
Warranty:
25–30 years.
Manufacturer experience:
Choose Tier-1 brands.

23. Frequently Asked Questions

Q1. Is Zero BB worth it?

Yes, especially for premium setups.

Q2. Does it reduce microcracks?

Yes, significantly.

Q3. Does Zero BB increase power generation?

Yes, by 5–7% annually depending on conditions.

Q4. Is Zero BB compatible with TOPCon?

Yes, perfectly.

Q5. How long does it last?

25–30 years easily.

24. Conclusion

Zero Busbar (0BB) technology is the next big milestone in solar panel innovation.
It eliminates shading losses, boosts efficiency, improves heat management, enhances aesthetics, and reduces microcracks.

With the rise of technologies like HJT, TOPCon, IBC, and Shingled, Zero BB will become the global standard by 2026.

Whether you are a homeowner, business owner, EPC contractor, manufacturer, or solar engineer—Zero Busbar modules offer the perfect blend of performance, durability, and future-readiness.
