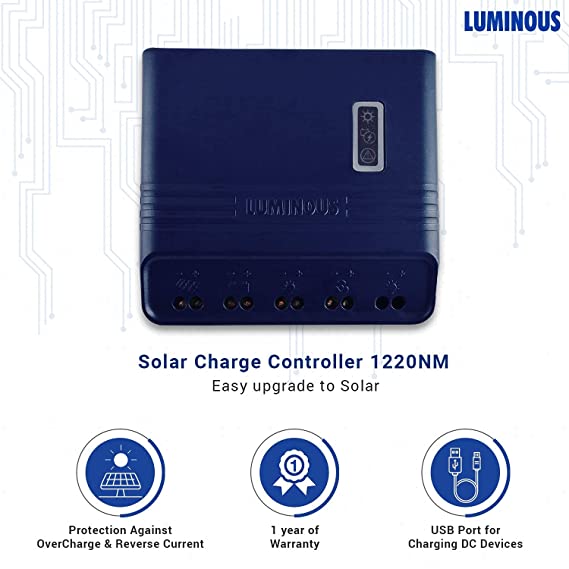

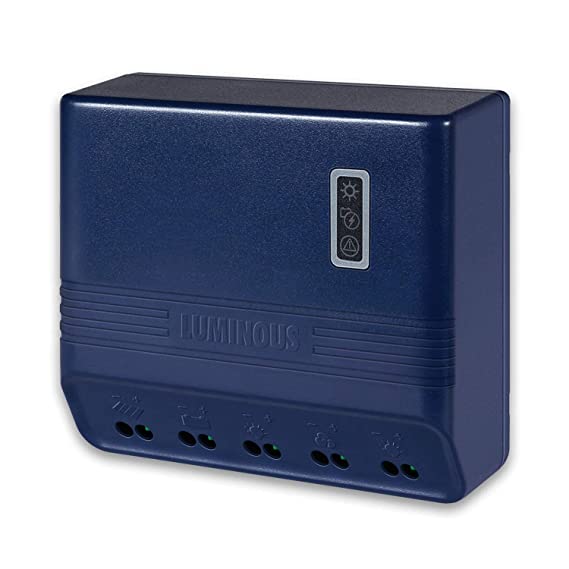

Luminous charge controller - 10 amp, 12-24V (SCC1220NM)

Product summary

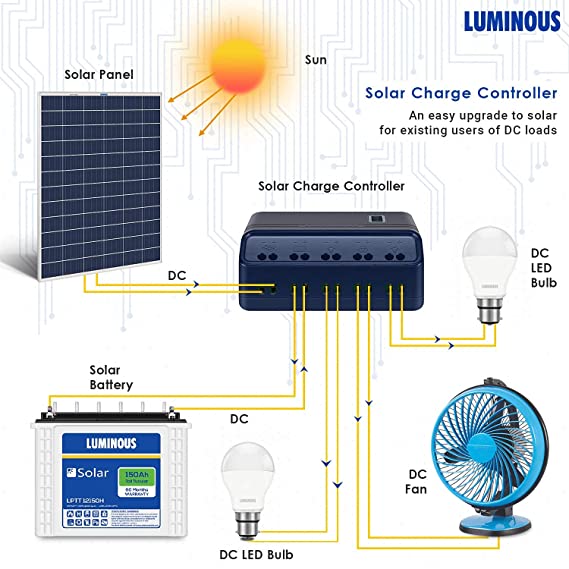

Solar Charge Controller is required for two purposes  To run DC lights, Fan and Mobile charging from Solar panel and battery  To Charge Inverter/ Auto Battery from Solar panel.

Capacity	10 Amps
Battery Voltage support	12 Volt / 24 Volt DC
Technology	PWM
Solar Panel Support	200 Wp @ 12V and 400 Wp @ 24 V

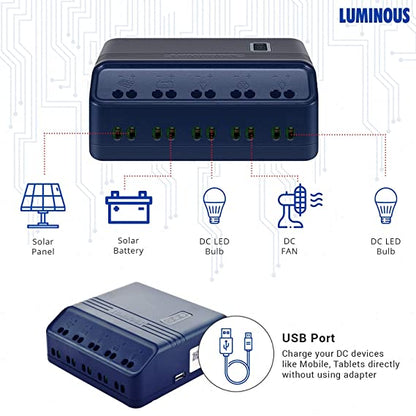

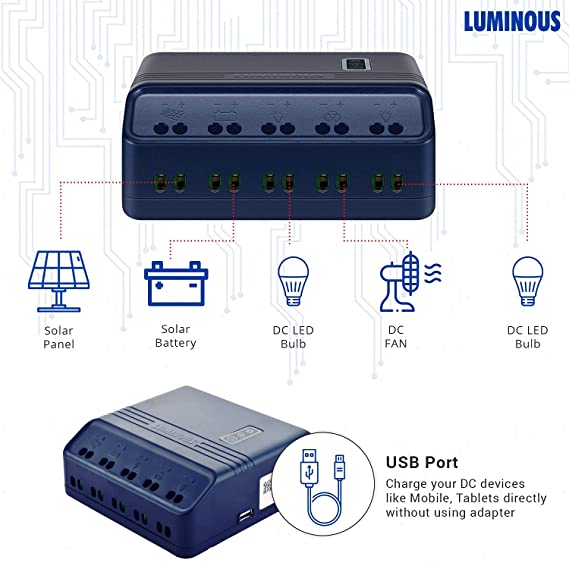

Mobile Charging	Yes, USB 0.5 amps 5 Volt
Automatic Lights on during the night	Yes, Dusk and Down Feature

Protections

• Short - Circuit

• Overload

• Reverse Connection

• Low Battery Discharge

• High Battery charge

LED Indications

• Battery Charging- Yellow LED blinking

• Low Battery – Red LED on

• Battery Full Charged – Yellow LED stable

• Reverse Connection, Error – Red LED on

Download product user manual and Datasheet to understand detailed product information and how to install it. Download Pdf- Luminous solar charge controller
