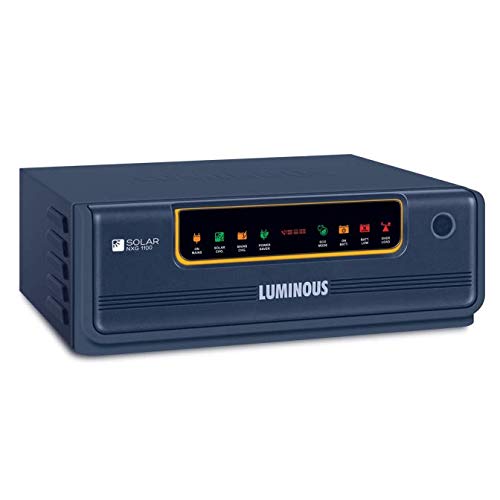

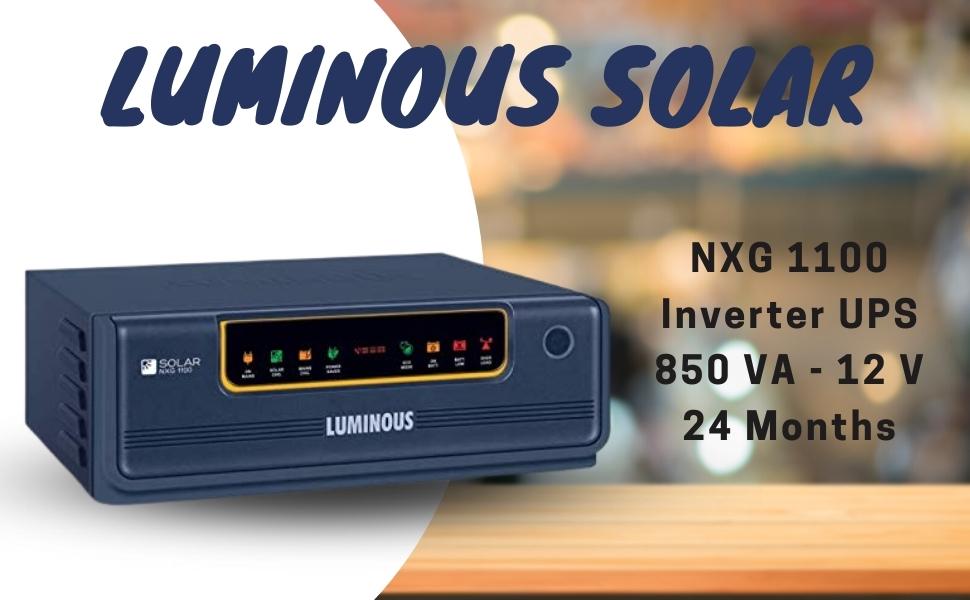

Luminous Solar nxg hybrid Inverter NXG+1100 - 12V

Features

Solar Hybrid UPS with inbuilt charge controllers are perfect choice for harnessing solar powers from panels to drive your household electrical loads. \n

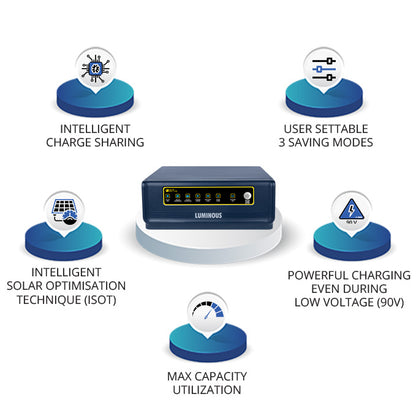

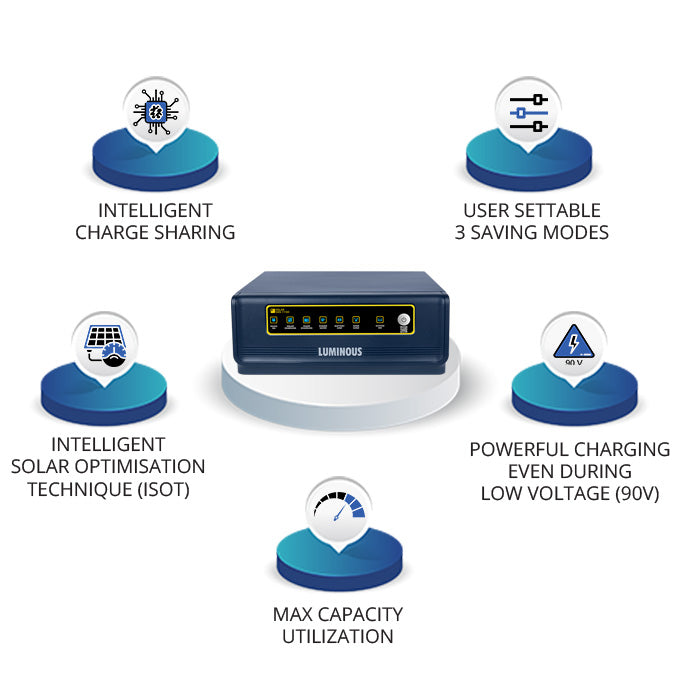

• Intelligent Solar Optimisation Technology - Maximises use of solar energy, charges from mains when required, saves 1.5-3 units per day

• Pure sine wave UPS with 80% efficiency

• Inbuilt charge controller for fast charging of batteries on solar

• Battery type selector to configure charging currents as per connected battery

Product Descriptions

More Information
Model	NXG+ 1100
Range Name (Solar)	NXG+
VA Rating	850 VA
Output Waveform	Sine Wave
Warranty	24 months
Net weight (kg.)	11.5
No. of 12V Batteries in Series	1
Technology (Solar)	Battery Required 12Volt 150AH
Maximum Power Voltage Vmp (V)	17V-19V
Max. supported panel power (Wp)	800 Wp
Nominal battery bank voltage	12 V
Input Voltage Range (Voc)	19V-25V
Product Dimensions (L*W*H)	37.5*31.5*13.5 CM
Application Area	Homes and Small Shops
