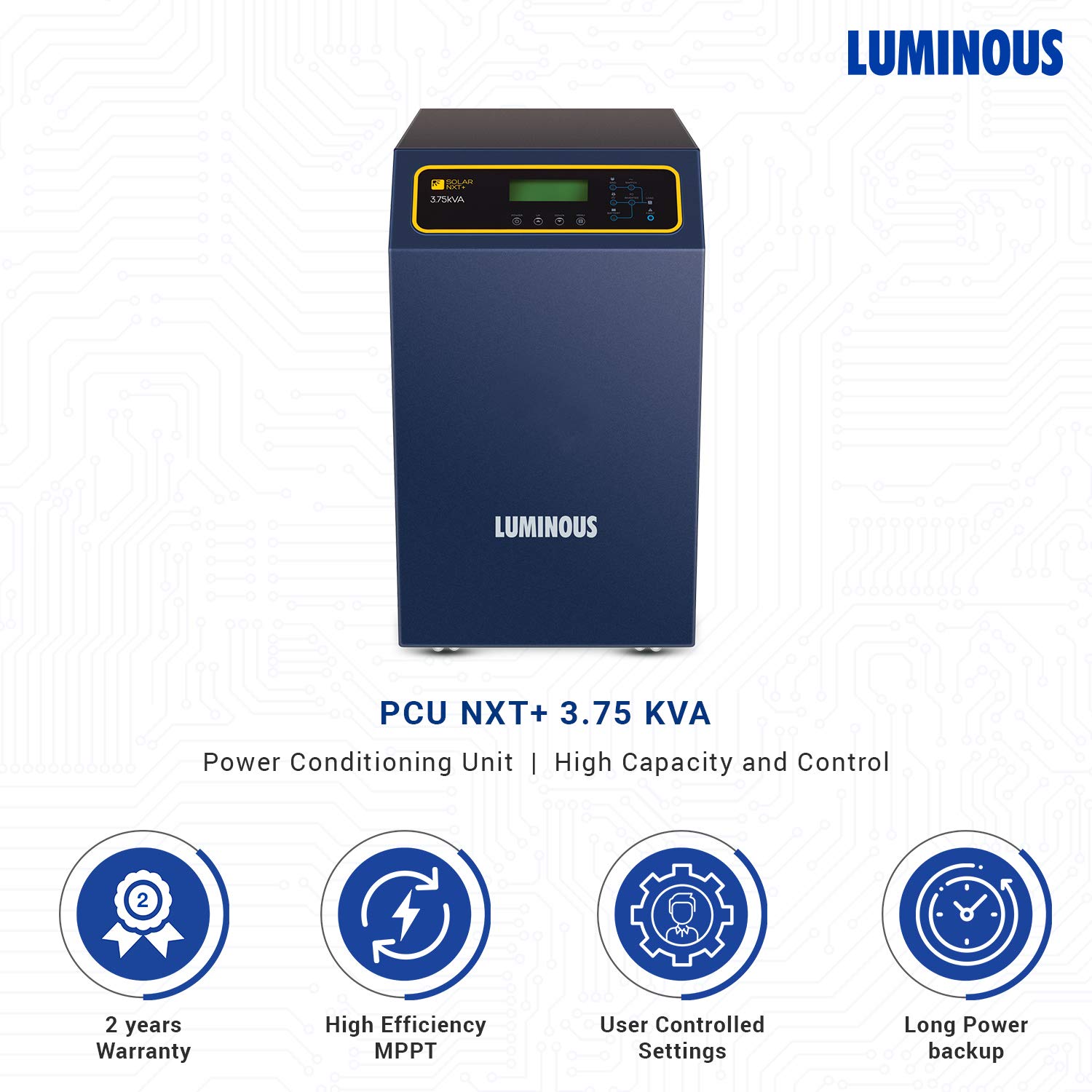

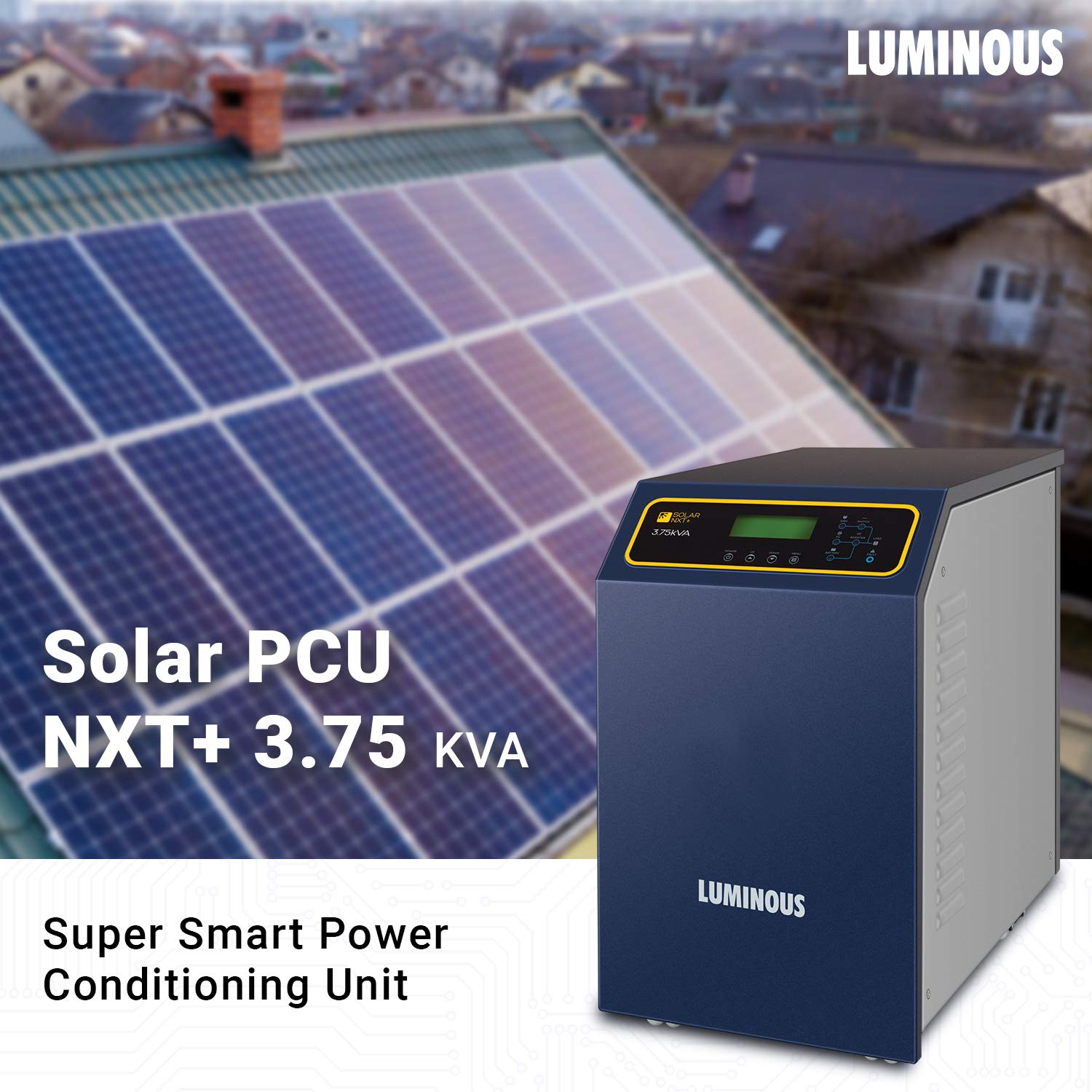

Luminous Solar PCU NXT+ 3.75KVA, 48V Solar Inverter Luminous Solar PCU NXT+ 3.75KVA, 48V Solar Inverter

Rs. 74,445.00 Rs. 52,849.00
Solar PCU Nxt+ 3.75 kVA /48 Volt offgrid hybrid Inverter NXT3.75 KVA   Luminous Solar PCU NXT+ 3.75KVA, 48V Inverter  Features: Rated AC power - 230V, 13A, Single phase Max...
Solar PCU Nxt+ 3.75 kVA /48 Volt offgrid hybrid Inverter NXT3.75 KVA   Luminous Solar PCU NXT+ 3.75KVA, 48V Inverter  Features: Rated AC power - 230V, 13A, Single phase Max...
Add to wishlist
Add to compare
Size Guide Size Guide
SKU: PCUNXT375PC1  Solar Inverter Offgrid
Description Description

Solar PCU Nxt+ 3.75 kVA /48 Volt offgrid hybrid Inverter NXT3.75 KVA



Luminous Solar PCU NXT+ 3.75KVA, 48V Inverter

Features:

  • Rated AC power - 230V, 13A, Single phase
  • Max Supported Panel Power - 3000 Wp,
  • Input Voltage Range (Vmp) - 65-130V
  • Charge Controller - MPPT,
  • Input Voltage 80-165 Voc
  • Nominal Battery Bank Voltage - 48V

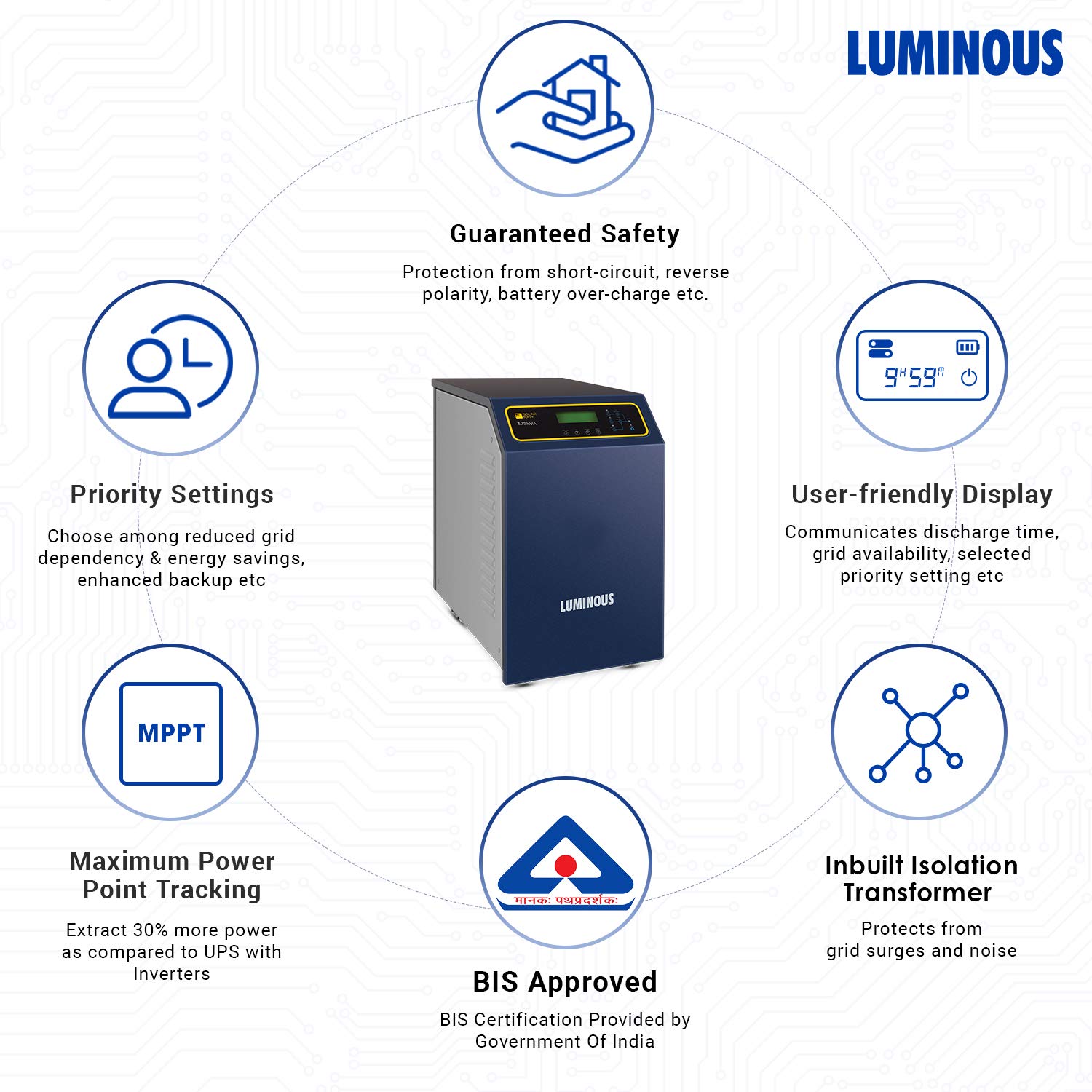

  • Intelligent system with 32 bit DSP Controller which enables it to handle multiple algorithms efficiently
  • Inbuilt MPPT charge controller extracts upto 30% more power from Panels Inbuilt isolation transformer to protect from grid surges and noise
  • Selectable source priority: Choose source priority from solar, battery and grid
  • User friendly Informative LCD Display for time charging, Supply etc
  • Dual MCB protection against short circuit protection for AC and DC
  • Safe for your home with comprehensive protection features such as short-circuit, reverse polarity, battery over-charge and battery deep-discharge.
  • Pure sine wave output for safety and noiseless operation of connected appliances.
  • Compliance to most of the National & International standards for safety and efficiency and reliability, such as IEC - 61683, IEC - 60068 - 1,2,14,30, IEC - 60529






Descriptions

Capacity 3 kW / 3.75 kVA
Technology Pure sine wave, Mppt (latest)
Power Load up to 3 kW mix of 1 ton Inverter AC, Home appliances such as Light, fan, TV, Laptop, refrigerator and water motor
Batteries required 4 nos. (100 - 200 Ah)

Technicals


Technology Sine wave
Solar panel current 46 amps
Solar panel voltage (VOC) 65 V - 130 V
Charger technology MPPT
Full Battery Recharge Time 10-12 Hrs

Inverter monitoring – Display

\nLuminous solar PCU inverters are made with customer friendly monitoring system, there are two kinds of display in inverters to monitor functioning of solar power conditioning units.

Led display


    • Grid led (green) – grid power is available

    • PV led (green) – solar is available

    • Inverter led (green) – inverter is switched on

    • Battery led (green)- battery charging (blinking) / battery discharging (led steady),

    • Fault led (red) – inverter is faulty

Lcd display
    • Battery voltage – charge level of battery

    • Load % - power consumption as a % of total inverter power

    • Output voltage

    • PV voltage – solar panel generating voltage

    • PV current – solar panel generating power in amps

    • Grid voltage – utility grid voltage level

    • Grid charging current – amp with which battery is being charged

    • Electricity saved - kwh

User Manual

Download user manual and data sheet to understand how to install the solar inverter and in case of faults how to trouble shoot.
