Pronounce Solar 2 in 1 MC4 Branch Connector for Solar Panels, (1+1 Pair), MC4 connector 2in 1out

Rs. 699.00 Rs. 399.00
Pronounce Solar Cable Connectors are made from high quality PPO materials to ensure the long term durability (compare to the cheap sheet metal pin), PPO materials have advantages that sturdy,...
SKU: PSMC42IN1OUT1PR  Solar Accessories
Description

Pronounce Solar Cable Connectors are made from high quality PPO materials to ensure the long term durability (compare to the cheap sheet metal pin), PPO materials have advantages that sturdy, impact, corrosion-resistant with a high Ignition point Ensure service life and safety performance. With excellent aging resistance and UV endurance,



About this item

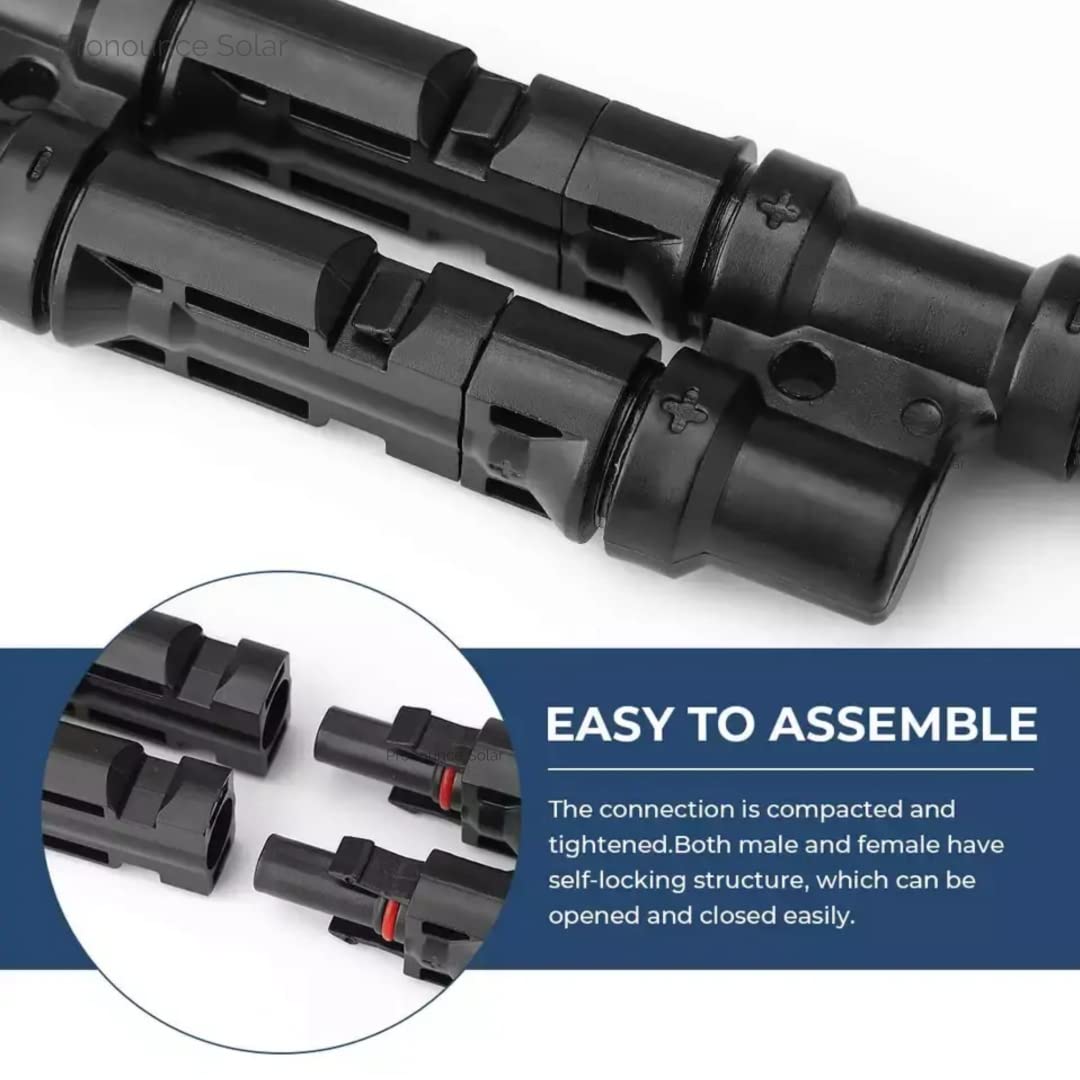

【MC4 Solar ConnectorsPronounce Solar 2in 1out Mc4 Connector Conductor pin is tinned Copper, Body is made of PPO + PA material, It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load.

【Product FeaturesOperating temperature: -40°C to +80°C; Rated voltage: 1500V DC; Rated Current: 50A.

【UV Resistance and Long Life With excellent aging resistance and UV endurance, it can be used in harsh environment., The estimated long life is 25 Years

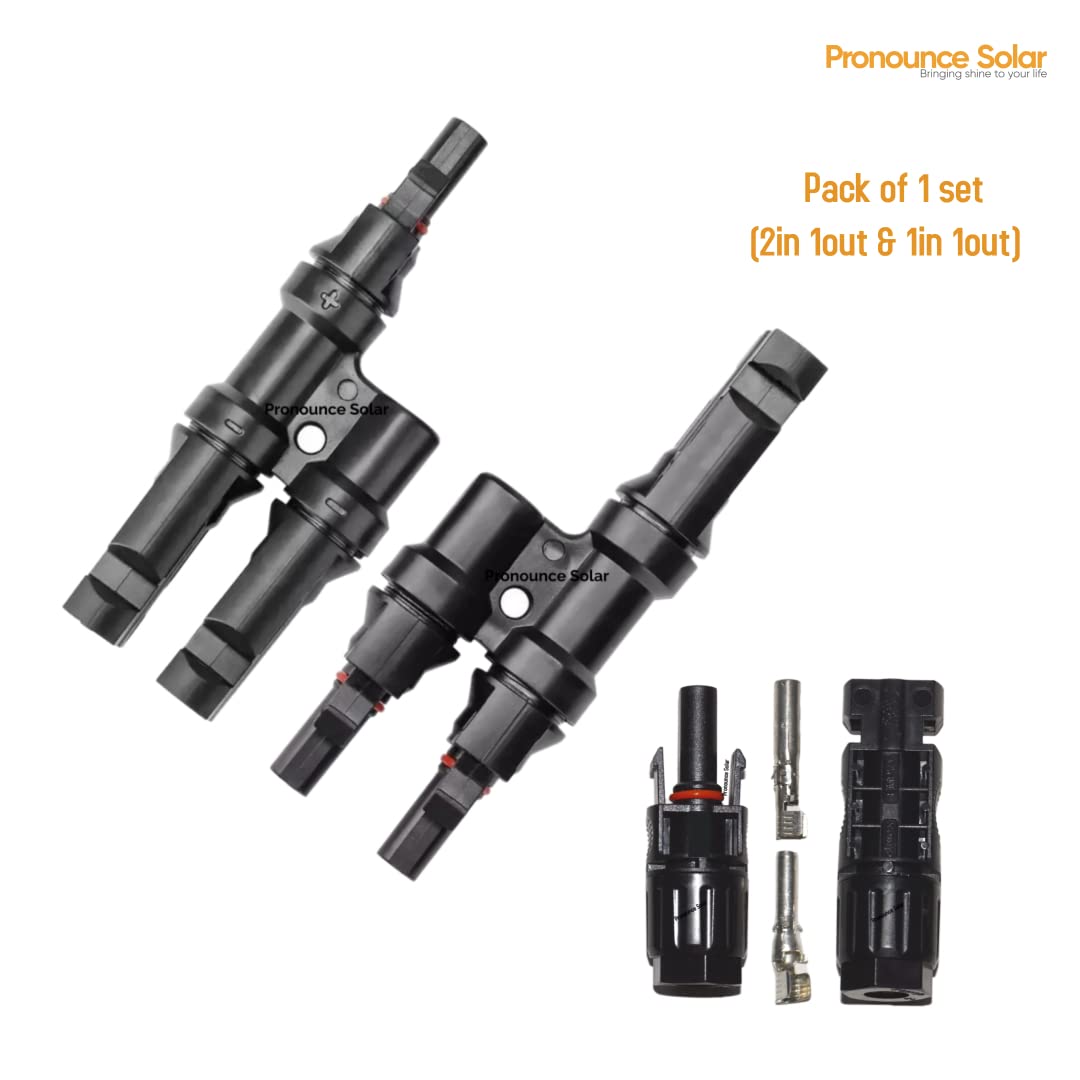

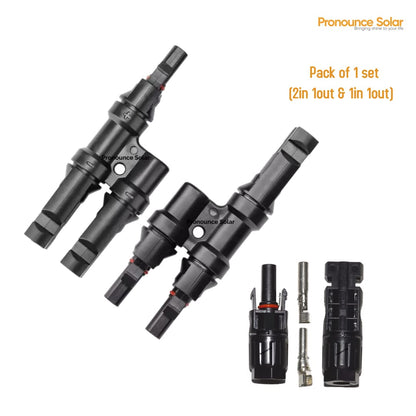

【What You Get1 pairs solar panel connectors 2in 1out and 1 pair of 1in 1out









Technical

 Rated Voltage   1500V DC
 Rated Current   50 AMP
 MC4 Pin Material  Copper with Outer Tin Plated
 MC4 Body Material   PPO +PA
 Dimension  10.8 X4.2 X 1.8cm
 Color   Black

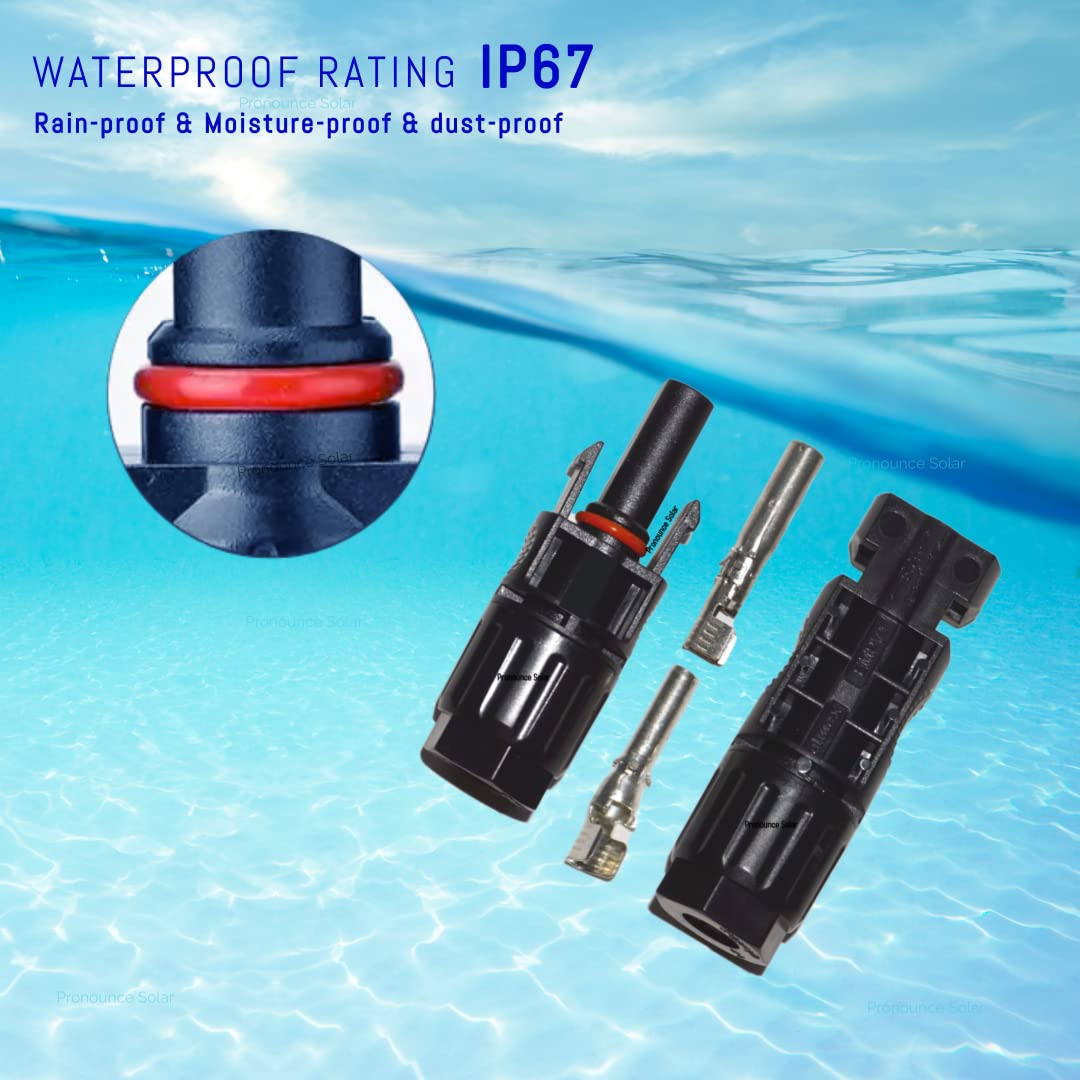

 Waterproof Class  IP67
 Flame Class   UL94-V0
 Temperature Range -40 ℃ ~ +80 ℃
 Wire Support  2.5mm² to 6mm² Solar DC Wire
 Set Type   Pair (Male and Female)
 Safety Class   II
 Contact Resistance   ≤3mΩ
 Test Voltage   6KV (50Hz, 1 Min)

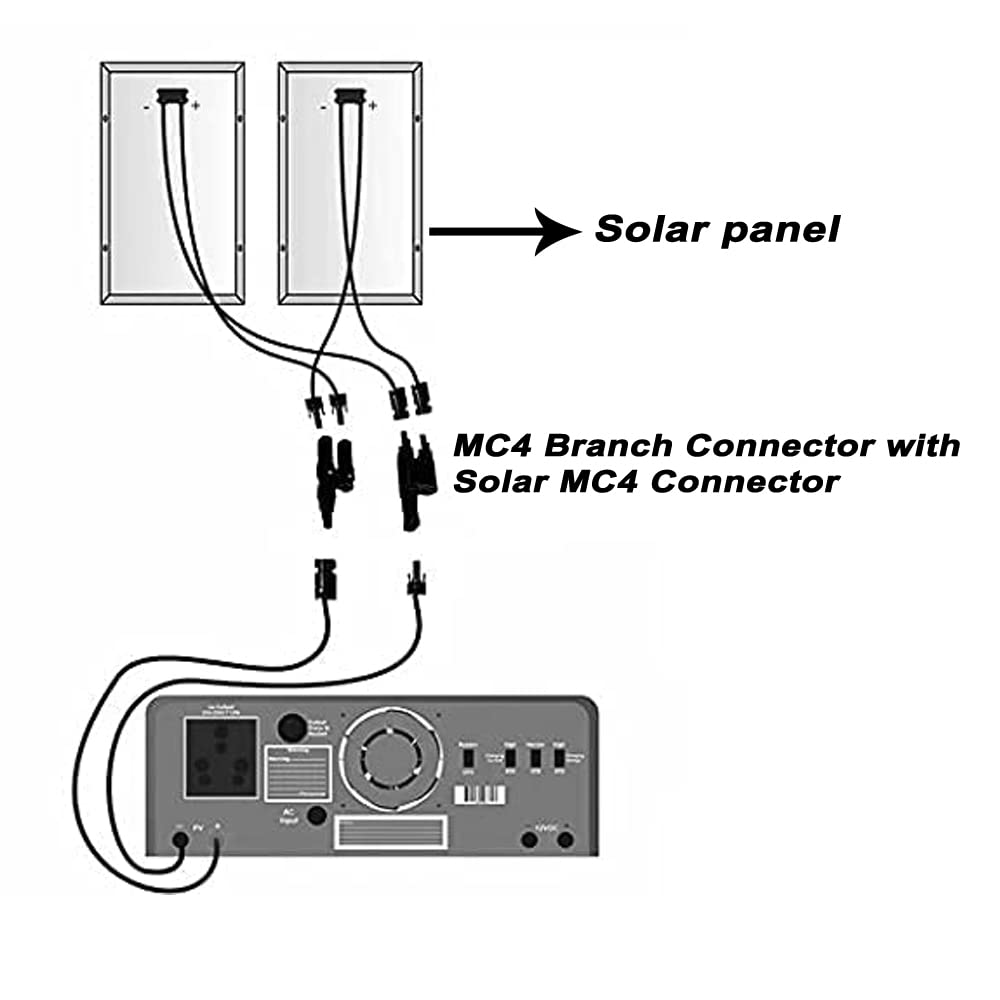

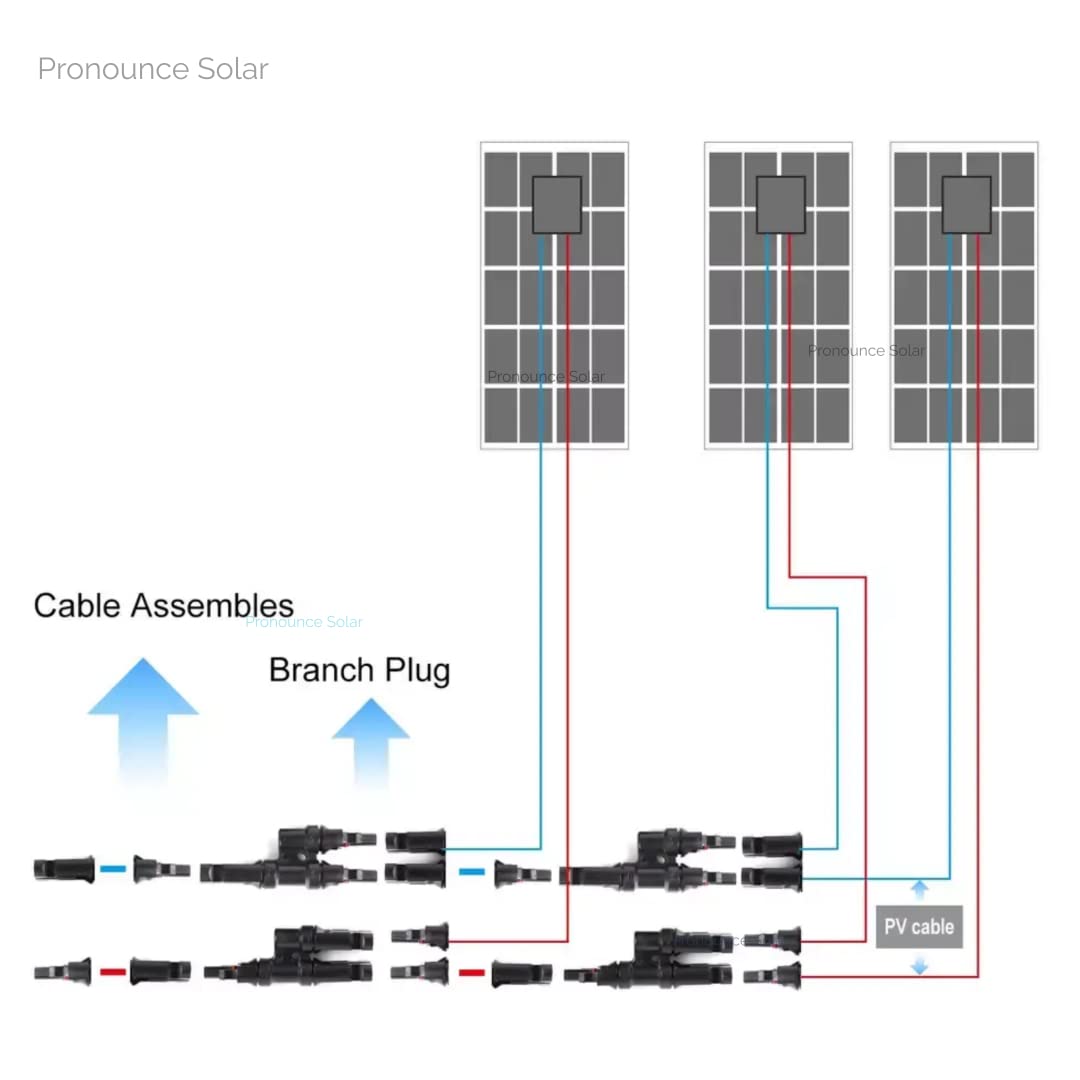

 Suitable For  Parallel & Series Connections
