Solocell Cable Connectors are made from high quality PPO materials to ensure the long term durability (compare to the cheap sheet metal pin), PPO materials have advantages that sturdy, impact, corrosion-resistant with a high Ignition point Ensure service life and safety performance. With excellent aging resistance and UV endurance,
About this item

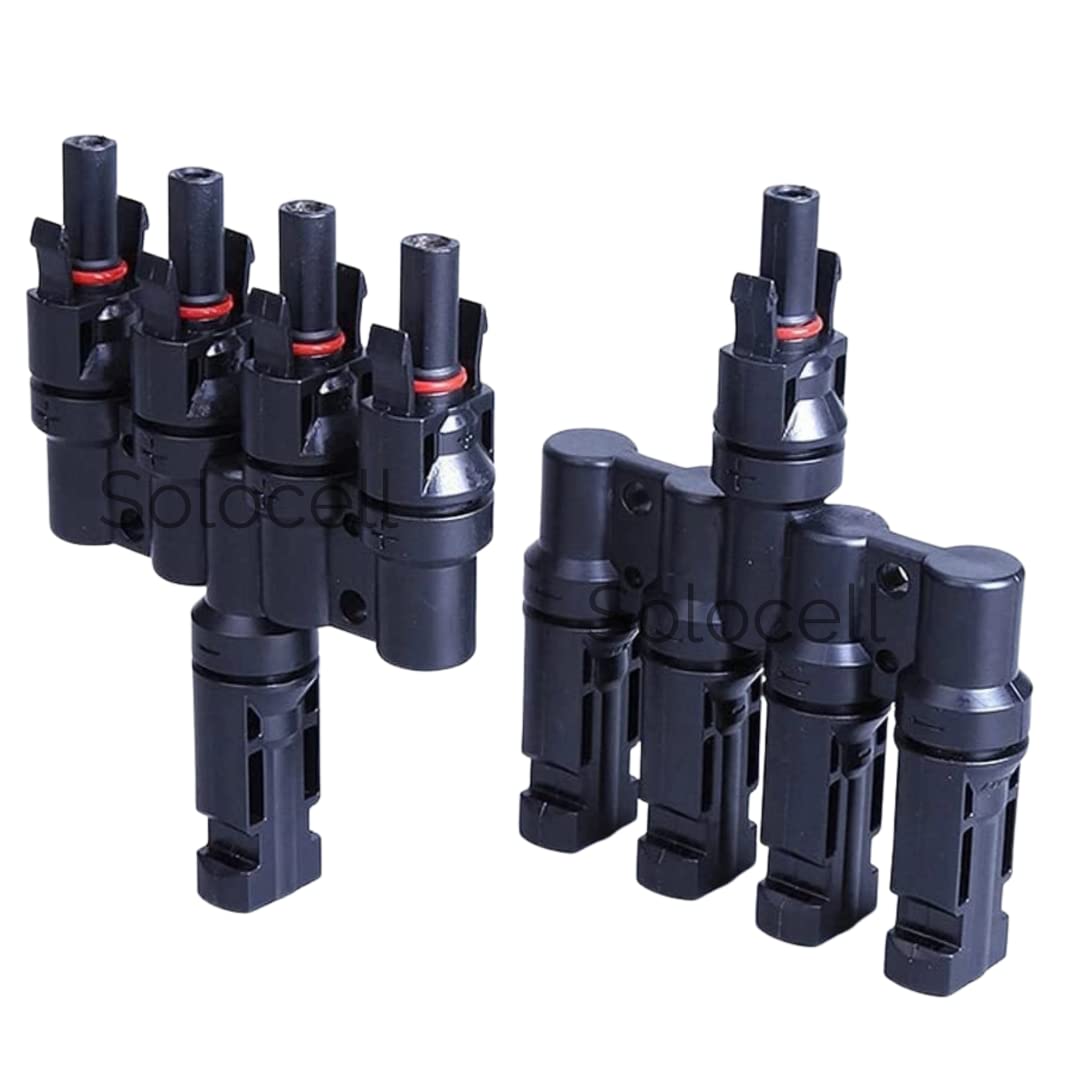

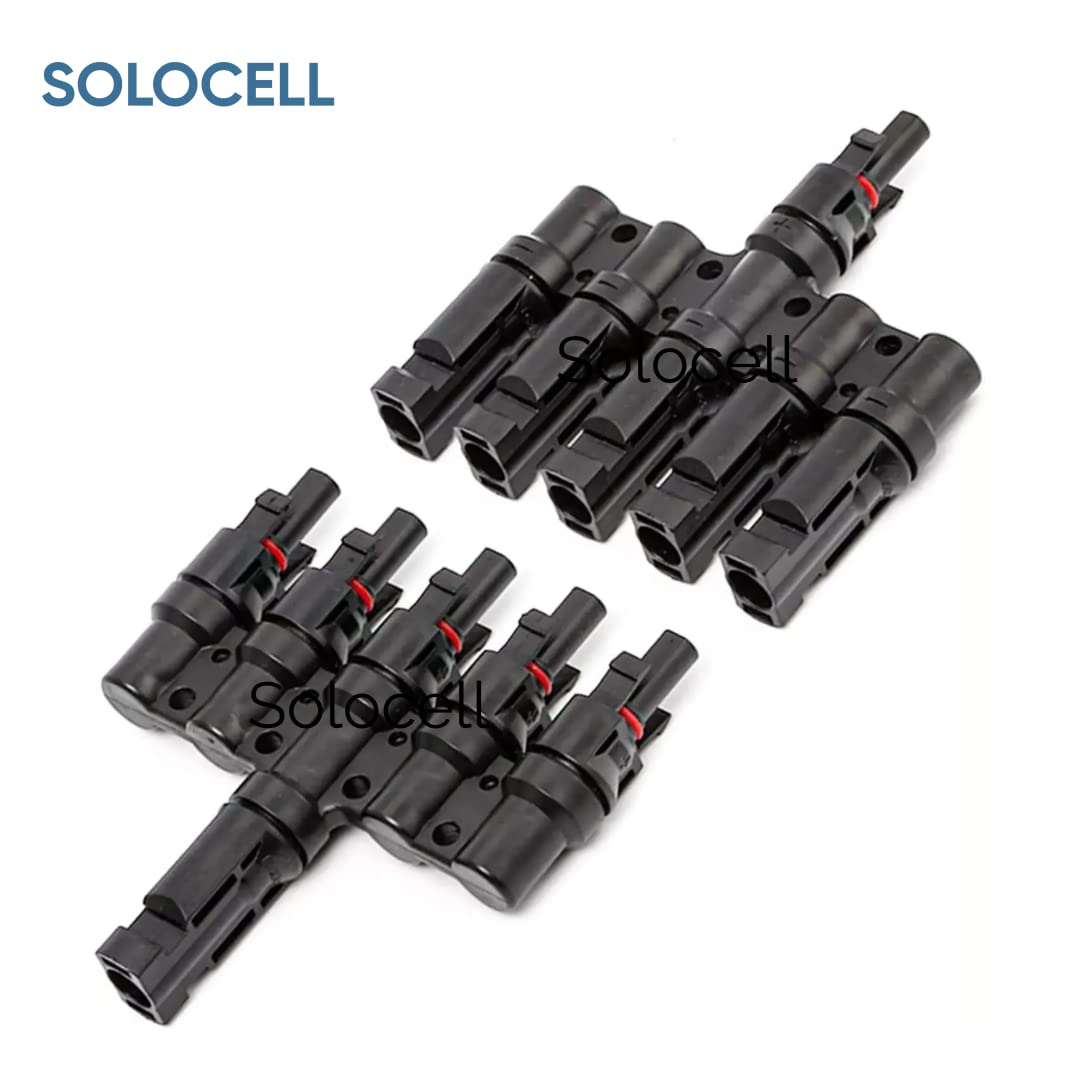

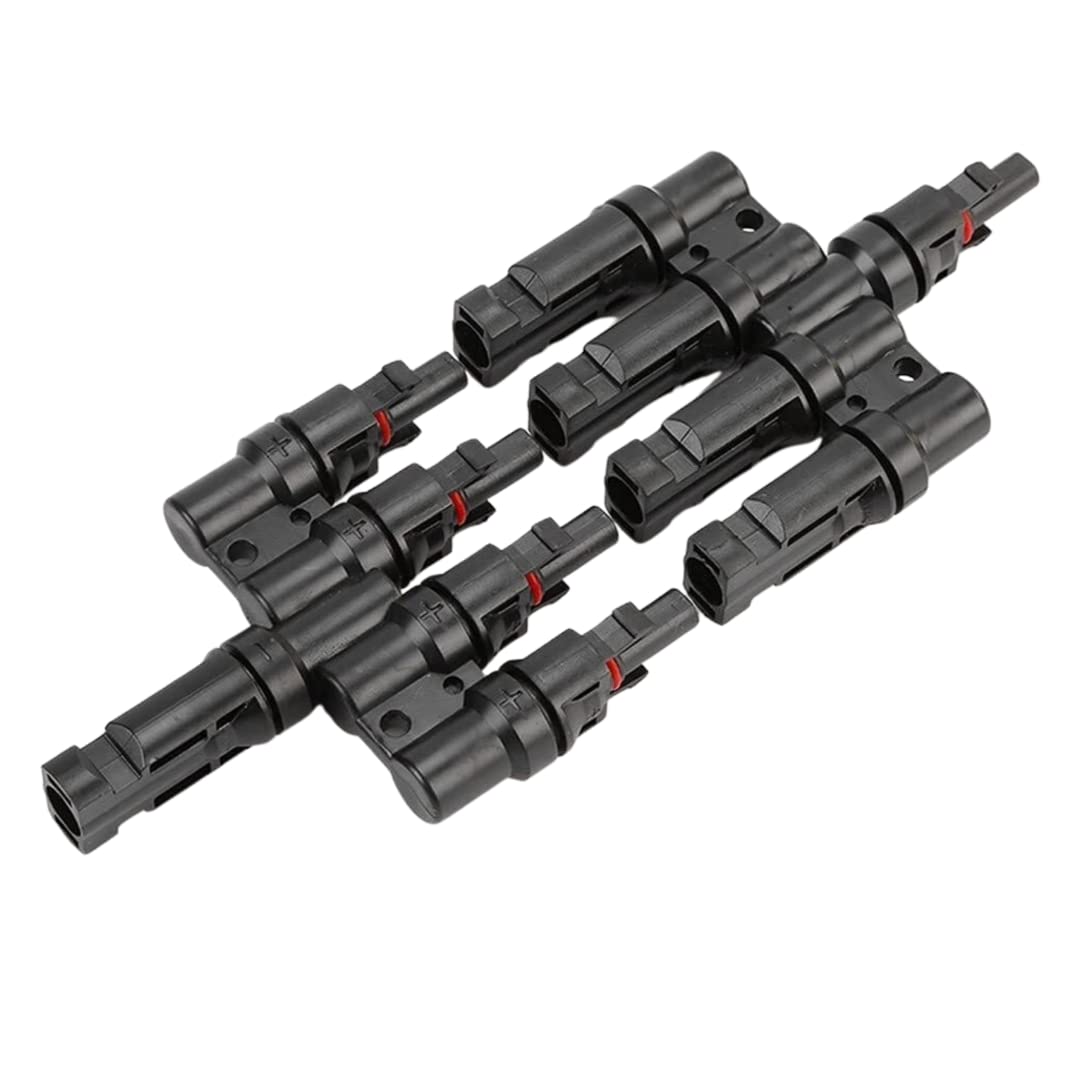

【MC4 Solar Connectors】Solocell 4in 1out Mc4 Connector Conductor pin is tinned Copper, Body is made of PPO + PA material, It makes a rock solid connection after you crimp the pin to the wire, and these are operated perfectly under heavy load.
【Product Features】Operating temperature: -40°C to +80°C; Rated voltage: 1500V DC; Rated Current: 50A.
【UV Resistance and Long Life 】With excellent aging resistance and UV endurance, it can be used in harsh environment., The estimated long life is 25 Years

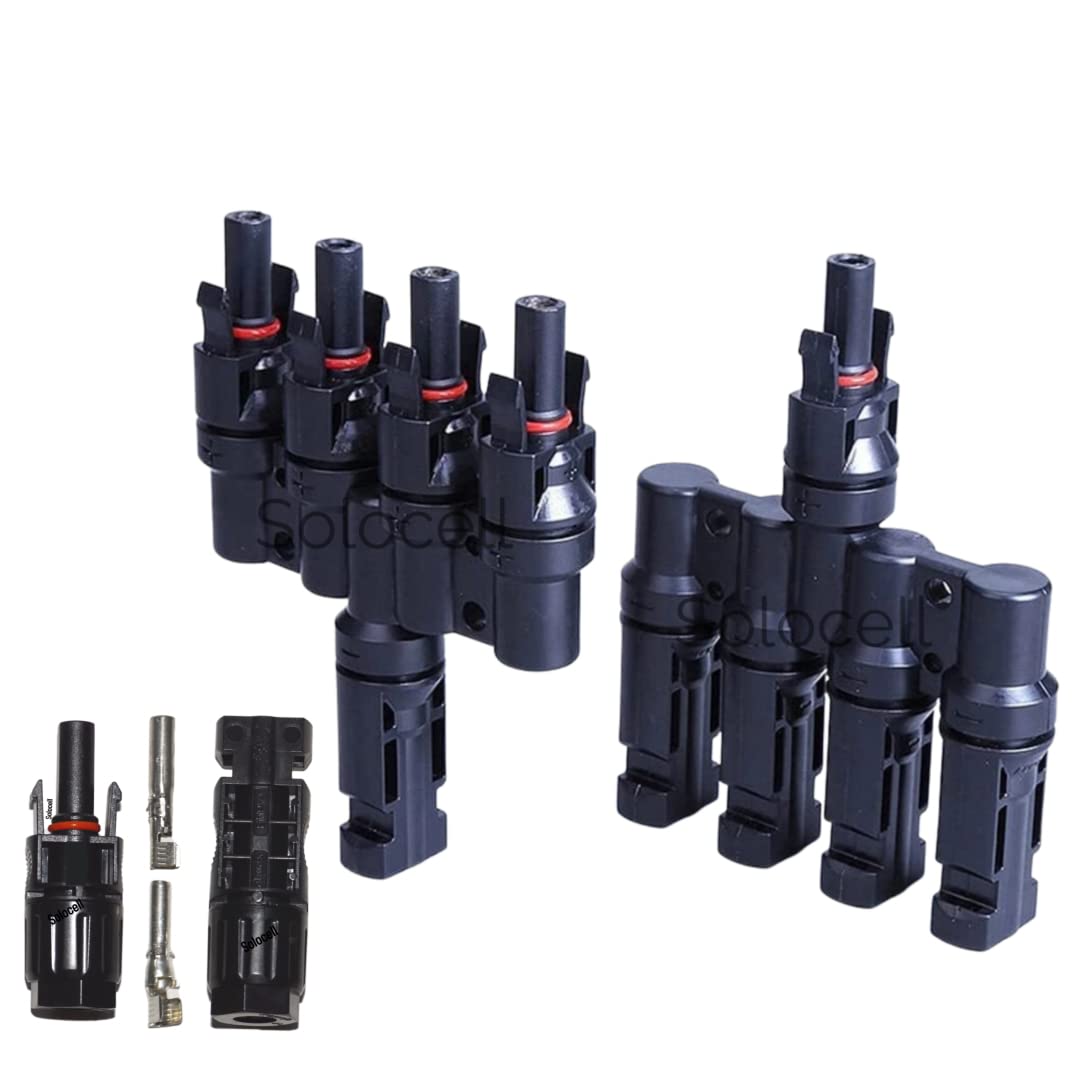

【What You Get】1 pairs solar panel connectors 4in 1out and 1 pair of 1in 1out
Technical
| Rated Voltage | 1500V DC |
| Rated Current | 50 AMP |

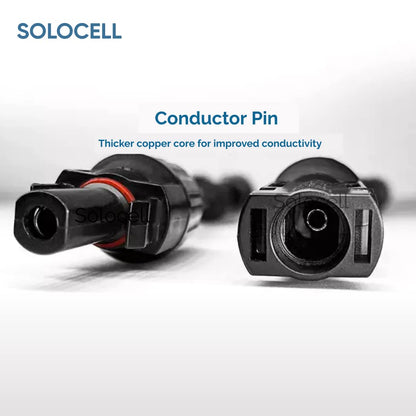

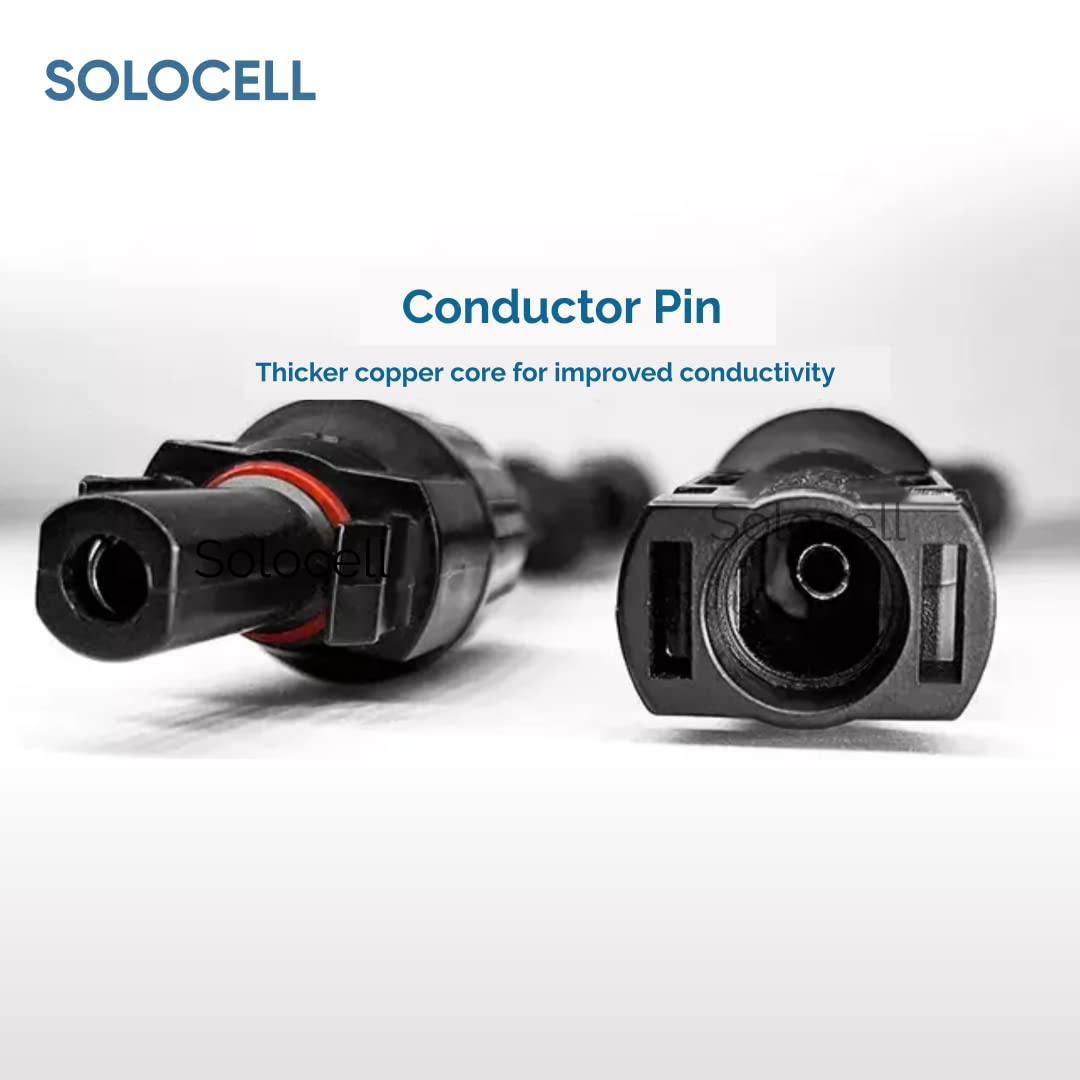

| MC4 Pin Material | Copper with Outer Tin Plated |
| MC4 Body Material | PPO +PA |
| Dimension | 10.8 X8.5 X 1.8cm |
| Color | Black |

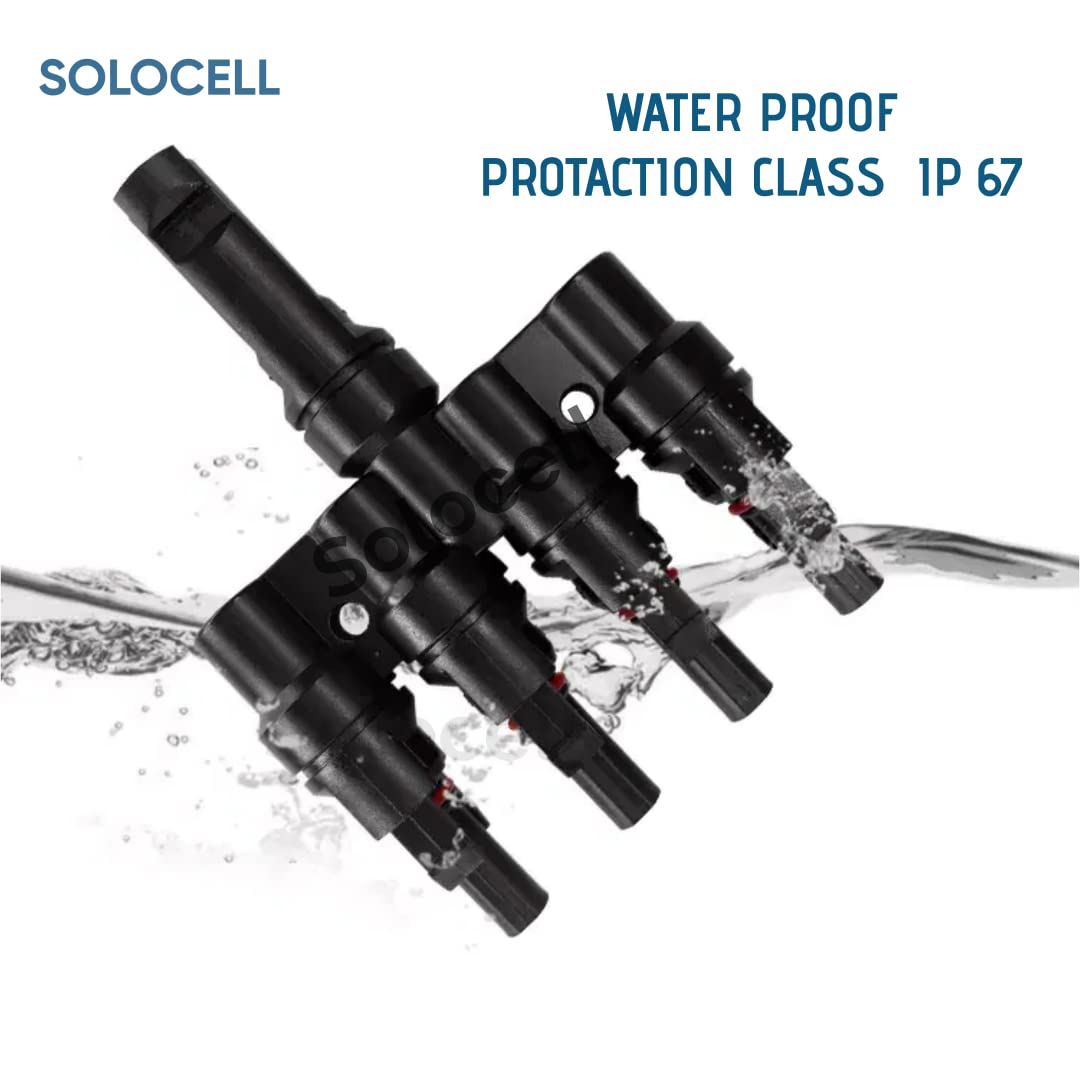

| Waterproof Class | IP67 |
| Flame Class | UL94-V0 |
| Temperature Range | -40 ℃ ~ +80 ℃ |
| Wire Support | 2.5mm² to 6mm² Solar DC Wire |
| Set Type | Pair (Male and Female) |
| Safety Class | II |
| Contact Resistance | ≤3mΩ |
| Test Voltage | 6KV (50Hz, 1 Min) |
| Suitable For | Parallel & Series Connections |
